Same model may have multiple batches, images only for reference.

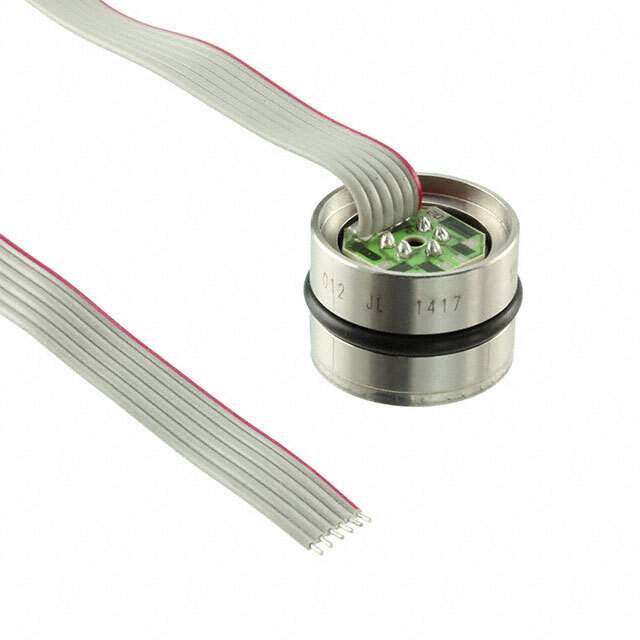

154N-030G-R Real Image
Same model may have multiple batches, images only for reference.

154N-030G-R

Part No 154N-030G-R
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE / Pressure Sensor 30PSI (206.84kPa) Vented Gauge 0 mV ~ 100 mV Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer TE Connectivity Measurement Specialties
Packaging Tube
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 30PSI (206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Style No Port
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 90PSI (620.53kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package Module
Base Product Number 154
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-154N-030G-R,223-1385-5
Standard Package 1
Win Source Part Number 1336512-154N-030G-R
Ultra Librarian 3D Model Ultra Librarian 154N-030G-R CAD Model

Description

The TE Connectivity Measurement Specialties 154N-030G-R pressure sensor is a high-quality sensor designed for use in board mount applications.

  • Pressure Type: vented gauge
  • Operating Pressure: 30PSI
  • Output Type: Wheatstone bridge
  • Output: 0 mV ~ 100 mV
  • Accuracy: ±0.1%
  • Temperature Compensated: Yes
  • Temperature Range: -40°C ~ 125°C
  • Package: module
  • Packaging: tube
  • Other Part Numbers: 2266-154N-030G-R and 223-1385-5
  • ROHS3 Compliant: Yes
