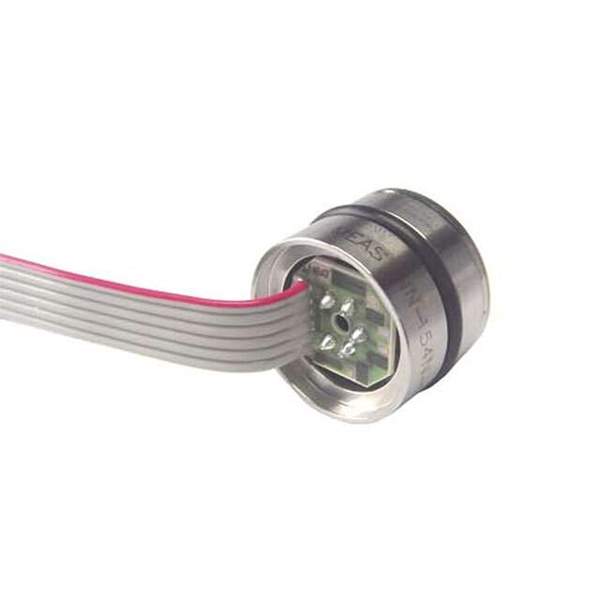

154N-015G-RT Real Image
Same model may have multiple batches, images only for reference.

154N-015G-RT

Part No 154N-015G-RT
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE / Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 100 mV Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer TE Connectivity Measurement Specialties
Packaging Tube
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Style No Port
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package Module
Base Product Number 154
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-154N-015G-RT,223-1383-5
Standard Package 1
Win Source Part Number 1336497-154N-015G-RT
Ultra Librarian 3D Model Ultra Librarian 154N-015G-RT CAD Model

Description

The TE Connectivity Measurement Specialties 1336497-154N-015G-RT Pressure Sensor is a high-quality electronic component that is designed for use in various applications.

  • Output Type: Wheatstone Bridge
  • Output: 0 mV ~ 100 mV
  • Pressure Type: vented gauge
  • Operating Pressure: 15PSI (103.42kPa)
  • Temperature Compensated: Yes
  • Accuracy: ±0.1%
  • Maximum Pressure: 45PSI (310.26kPa)
  • Mounting Type: board mount
  • Packaging: tube
  • Termination Style: connector
  • HTSUS: 9026.20.4000
  • Base Product Number: 154
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
