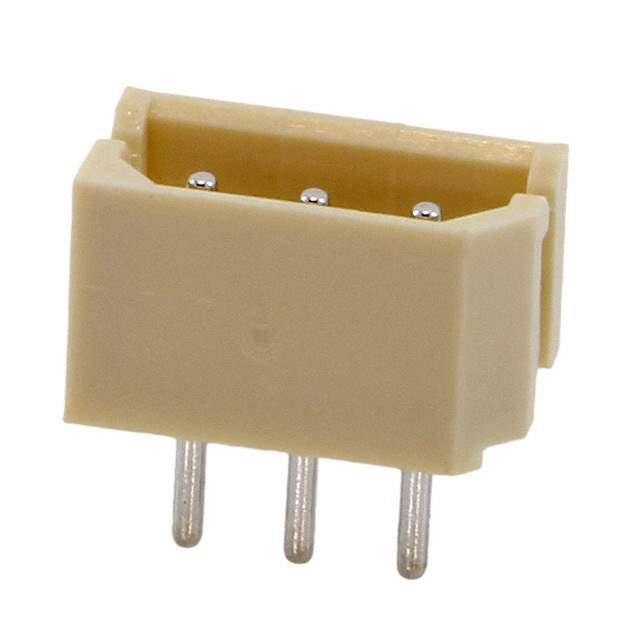

1470224-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series High Performance Interconnect (HPI)
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.232" (5.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color Ivory
Current Rating (Amps) 3A
Voltage Rating 250V
Contact Finish Thickness - Post 50.0µin (1.27µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 1470224
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1470224-3-ND,A112218,-1470224-3-SI
Standard Package 750
Win Source Part Number 1123076-1470224-3
Ultra Librarian 3D Model Ultra Librarian 1470224-3 CAD Model

Description

The TE Connectivity AMP Connectors 1470224-3 is a male pin header connector that is used for automotive, general purpose, industrial, and medical applications.

  • Positions: Three
  • Contacts loaded: All
  • Mounting: Through-hole
  • Pitch: 0.098” (2.50mm)
  • Current rating: 3A
  • Package: Bulk
  • Temperature range: -40°C to 105°C
  • Shrouded: With 4 walls
  • Contact shape: Square
  • Insulation material: Polyamide (PA66), nylon 6/6
