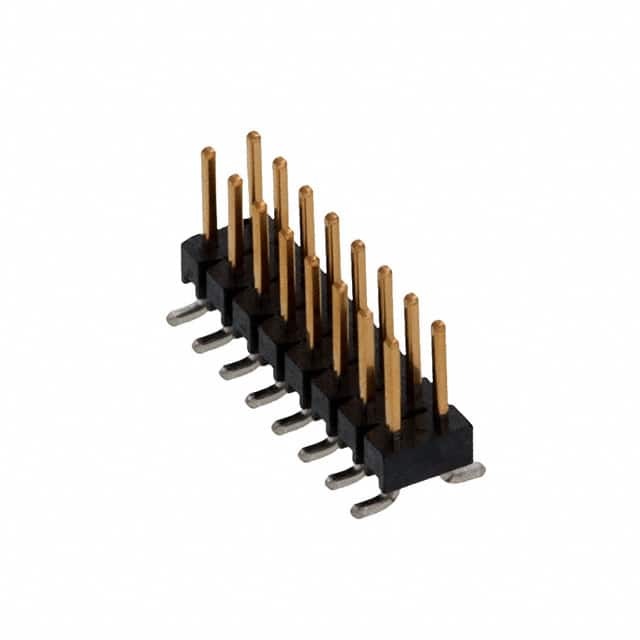

146130-7
Same model may have multiple batches, images only for reference.

146130-7

Part No 146130-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 16POS 2.54MM / Connector Header Surface Mount 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU Mod II
Package Tube
Product Status Obsolete
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 30VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 146130
Standard Package 26 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853997-146130-7
Ultra Librarian 3D Model Ultra Librarian 146130-7 CAD Model

Description

The 853997-146130-7 is a male pin header connector from TE Connectivity.

  • Series: AMPMODU Mod II
  • Positions: 16
  • Application: Board-to-board or Cable connections
  • Mounting: Surface Mount
  • Pitch: 0.100" (2.54mm)
  • Contact Material: Copper Alloy
  • Mating Contact Finish: Gold
  • Post Contact Finish: Tin-Lead
  • Voltage Rating: 30VAC
  • Current Rating: 3A
  • Temperature Range: -65°C to 125°C
