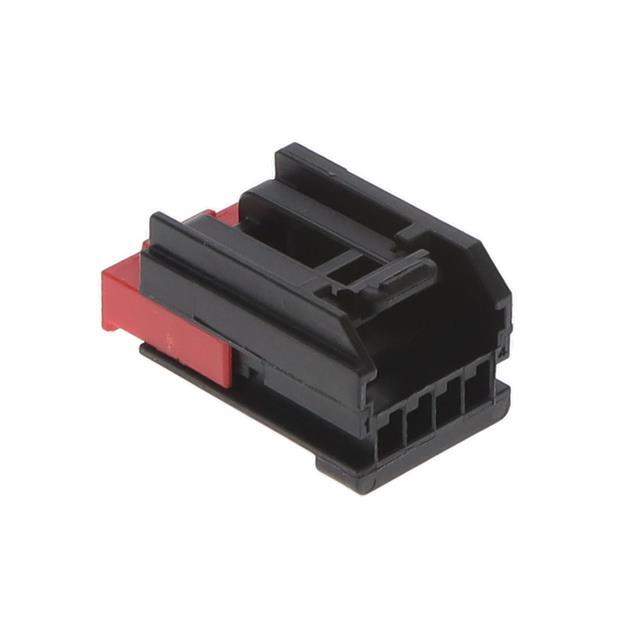

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Mfr TE Connectivity
Series 0.64
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 4
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Features Connector Position Assurance (CPA)
Insulation Material Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating -40°C ~ 100°C
Base Product Number 1456983
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Standard Package 900 pcs
Win Source Part Number 1380527-1456983-1
Ultra Librarian 3D Model Ultra Librarian 1456983-1 CAD Model

Description

The 1380527-1456983-1 is a rectangular connector housing from TE Connectivity.

  • Series: 0.64
  • Number of Positions: 4
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Features: Connector Position Assurance (CPA)
  • Connector Type: Receptacle with Female Socket Contacts
  • Number of Rows: Single
  • Fastening: Locking Ramp
  • Mounting: Free-Hanging (In-Line)
  • Standard Package: 900 pcs
  • Insulation Material: Polyamide (PA), Nylon, Glass-Filled
  • Operating Temperature: -40°C to 100°C
  • ECCN Compliance: Compliant
  • REACH: Unaffected
