Products specifications

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Usage Backplane
Connector Type Receptacle, Female Blade Sockets
Connector Style VITA 46, Center
Number of Positions 144
Number of Positions Loaded All
Pitch 0.071" (1.80mm)
Number of Rows 9
Number of Columns 16
Mounting Style Through Hole
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 50.0μin (1.27μm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Manufacturer Pack Quantity 17
MSL Level 1 (Unlimited)
Win Source Part Number 1121269-1410140-1
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Defence, Military & Aerospace, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian 1410140-1 CAD Model

Description

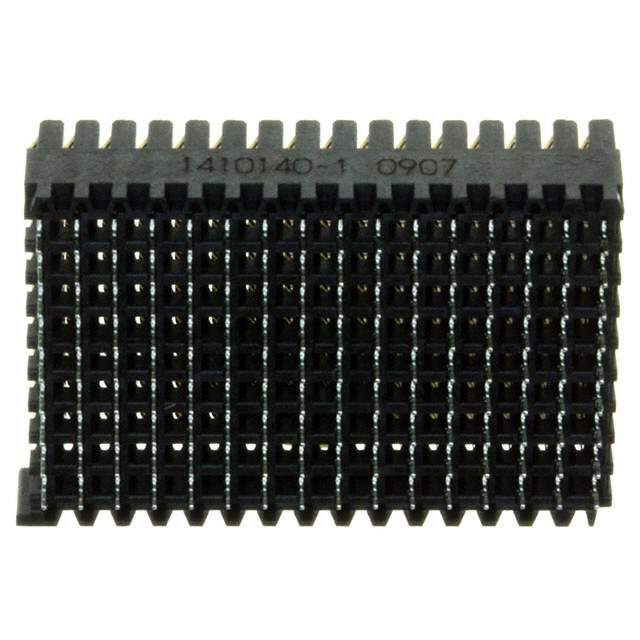

The TE Connectivity AMP Connectors 1410140-1 is a 144-position female blade socket connector with a 0.071" pitch.

  • Positions: 144
  • Gender: Female
  • Pitch: 0.071"
  • Application: Backplane
  • Standard: VITA 46
  • Connector Style: Center Connector
  • Loaded: All
  • Rows: 9
  • Columns: 16
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Color: Black
  • Voltage Rating: Not Specified
  • Insulation Material: Polymer Thermoplastic, Glass Filled
  • Flammability Rating: UL94 V-0
  • Packaging: Tube
  • Operating Temperature: -55°C to 105°C
  • MSL Level: 1 (unlimited)
  • Current Rating: Not Specified
