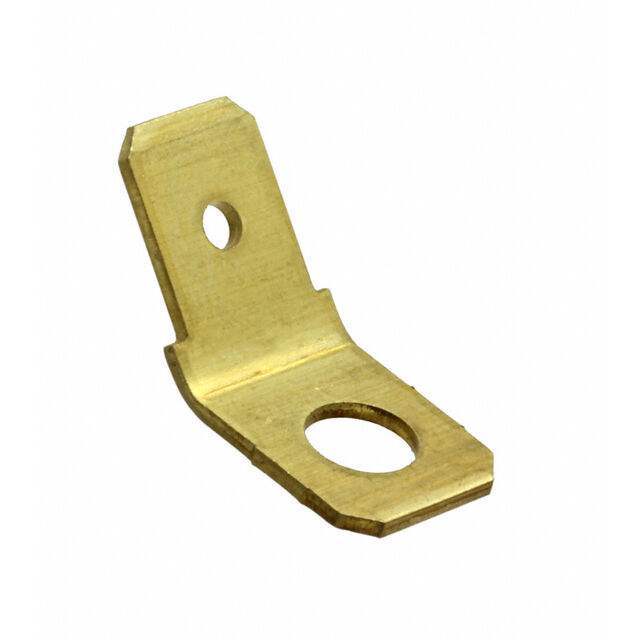

140814-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

140814-1

Part No 140814-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC TAB 0.250
Datasheet
140814-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310164-140814-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > Quick Connects, Quick Disconnect Connectors
Packaging Bulk
Part Status Active
Terminal Type Angled - 45°
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.311" (7.90mm)
Termination Screw, Rivet, Stud
Insulation Non-Insulated
Mounting Type Board, Chassis
Ultra Librarian 3D Model Ultra Librarian 140814-1 CAD Model

Description

● PCB Terminal Type: Tab<br />● Mating Tab Width: 6.35 mm [ .25 in ]● Mating Tab Thickness: .81 mm [ .032 in ] ● PCB Hole Diameter: 4.1 mm [ .16 – 16 in ]● Termination Method to PCB: Through Hole - Screw
