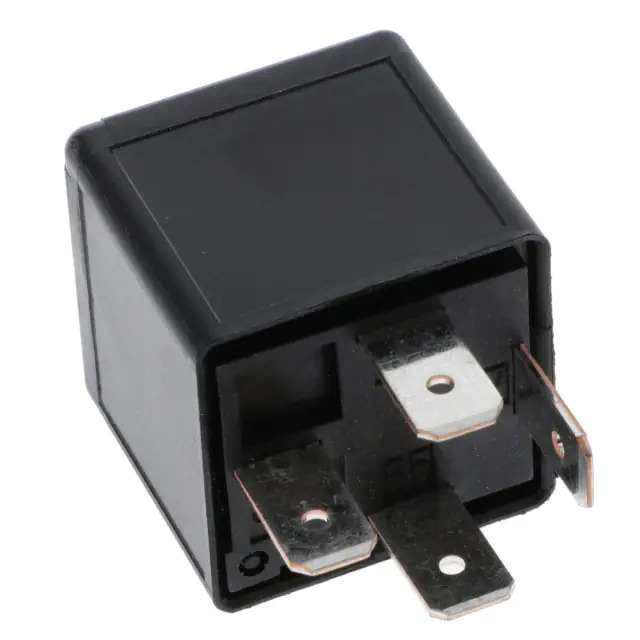

1393303-9 TE Connectivity
Same model may have multiple batches, images only for reference.

1393303-9

Part No 1393303-9
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 28VDC - Nom
Coil Current 74.1 mA
Coil Type Non Latching
Features -
Termination Style Plug In, Quick Connect - 0.110" (2.8mm)
Seal Rating -
Coil Insulation -
Must Operate Voltage 14.4 VDC
Must Release Voltage 3.2 VDC
Operate Time 7 ms
Release Time 2 ms
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 324 Ohms
Base Product Number 1393303
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373419-1393303-9
Ultra Librarian 3D Model Ultra Librarian 1393303-9 CAD Model

Description

The TE Connectivity AMP Connectors power relay is a high-quality and reliable component for your power relay needs.

  • Coil Voltage: 24VDC
  • Contact Rating: 20A
  • Contact Form: SPST-NO (1 Form A)
  • Application: General Purpose
  • Switching Voltage: 28VDC
  • Operating Temperature: -40°C to 125°C
  • Termination Style: Plug-In, Quick Connect
  • Contact Size: 0.110" (2.8mm)
  • Coil Type: Non-Latching
  • Coil Current: 74.1mA
  • Packaging: Bulk
  • Product Status: Active
