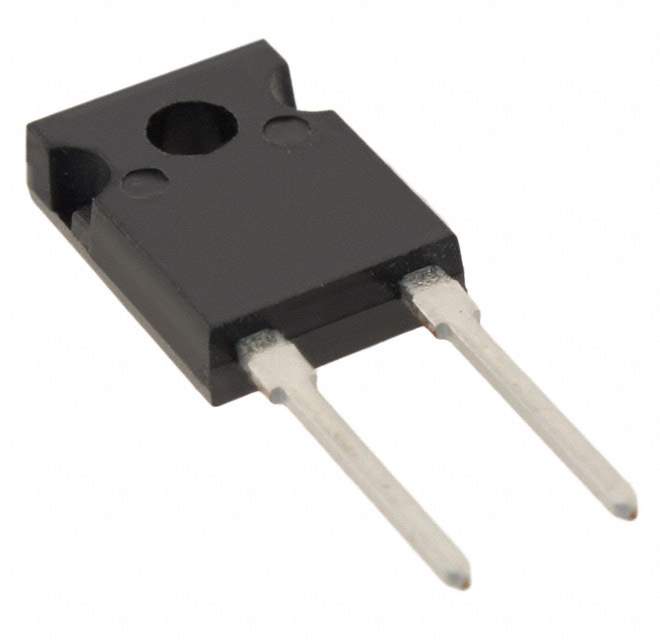

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Caddock Electronics Inc.
Packaging Tube/Rail
Status Active
Resistance (Ohms) 20
Tolerance ±1%
Power (Watts) 15W
Composition Thick Film
Features Moisture Resistant, Non-Inductive
Temperature Coefficient -20/ +80ppm/°C
Temperature Range - Operating -55°C to 150°C
Case / Package TO-126
Height - Seated (Max) 0.450" (11.44mm)
Number of Terminations 2
Win Source Part Number 208713-MP915-20.0
Ultra Librarian 3D Model Ultra Librarian MP915-20.0 CAD Model

Description

The MP915-20.0 is a moisture-resistant and non-inductive resistor manufactured by Caddock Electronics Inc.

  • Power Rating: 15W
  • Resistance: 20 ohms
  • Tolerance: ±1%
  • Temperature Coefficient: -20/ +80ppm/°C
  • Composition: Thick Film
  • Terminations: 2
  • Maximum Height: 0.450" (11.44mm)
  • Packaging: Tube/Rail
  • Temperature Range: -55°C to 150°C
  • Component Category: Resistors
  • Status: Active
