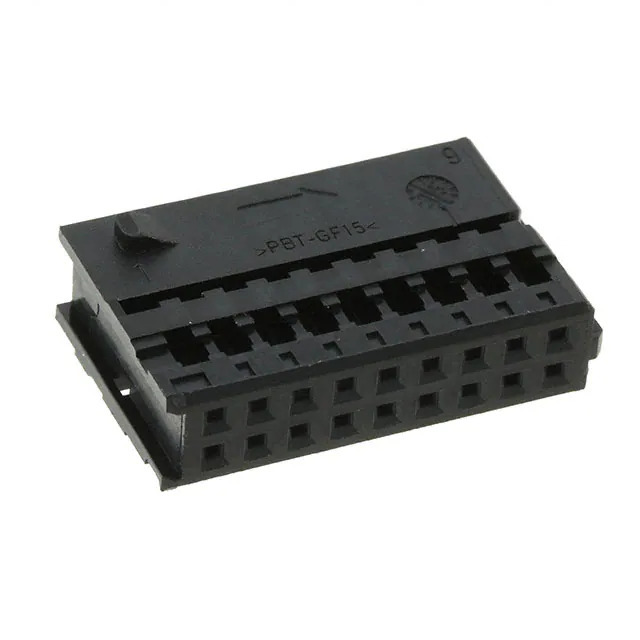

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Micro Quadlok
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 18
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Temperature Range - Operating -40°C ~ 120°C
Note Contacts Not Included
Base Product Number 1355348
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1363705-1355348-1
Ultra Librarian 3D Model Ultra Librarian 1355348-1 CAD Model

Description

The TE Connectivity AMP Connectors Micro Quadlok is a rectangular connector housing designed for various applications in the electronics industry.

  • Temperature Range: -40°C to 120°C
  • Mounting: Free Hanging (In-Line)
  • Color: Black
  • Connector Type: Receptacle
  • Number of Positions: 18
  • Number of Rows: 2
  • Contact Termination: Crimp
  • Note: Contacts not included
  • Pitch: 0.100" (2.54mm)
  • Row Spacing: 0.100" (2.54mm)
