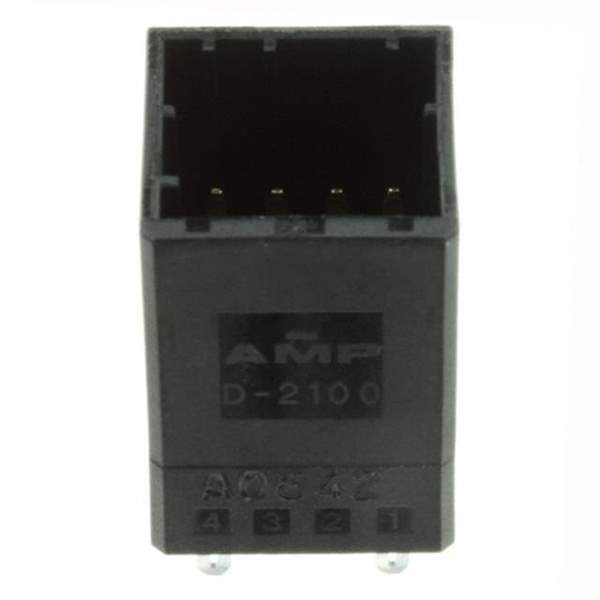

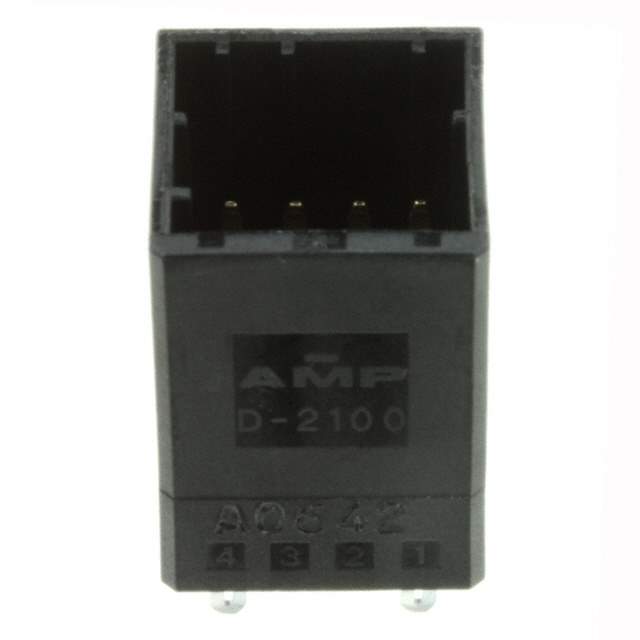

1318125-1 Real Image1 1318125-1 Real Image2
Same model may have multiple batches, images only for reference.
1318125-1 Real Image1 1318125-1 Real Image2
1318125-1 Real Image1 1318125-1 Real Image2
Same model may have multiple batches, images only for reference.

1318125-1

Part No 1318125-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 2.5MM / Connector Header Through Hole 8 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-2100
Package Tube
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.148" (3.75mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length -
Insulation Height 0.700" (17.78mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose, Industrial
Base Product Number 1318125
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362525-1318125-1
Ultra Librarian 3D Model Ultra Librarian 1318125-1 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-2100 series is a board lock header connector designed for general purpose and industrial applications.

  • Temperature Range: -55°C to 105°C
  • Packaging: Tube
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
  • Product Status: Active
  • Base Product Number: 1318125
  • Number of Positions: 8
  • Number of Rows: 2
  • Style: Board-to-Board or Cable
  • Current Rating: 5A
  • Contact Finish: Gold
