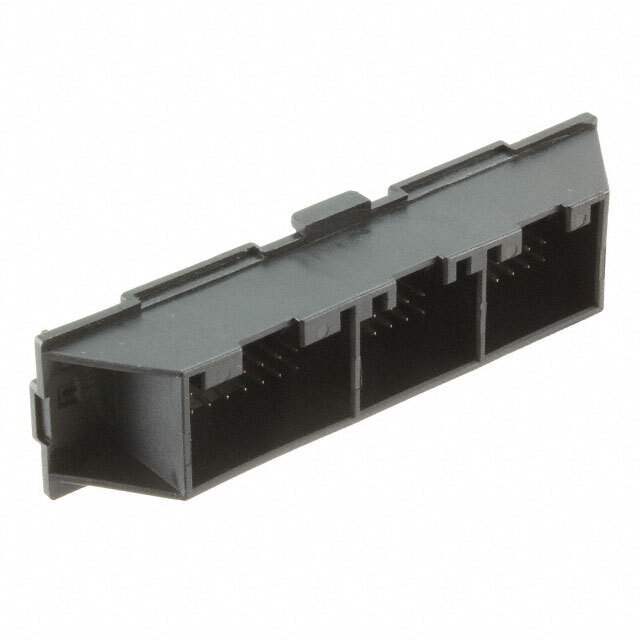

1241209-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1241209-1

Part No 1241209-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.5MM
Datasheet
1241209-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310405-1241209-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 40 (16 + 12 + 12)
Number of Rows 2
Style Board to Board or Cable
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian 1241209-1 CAD Model

Description

Connector Header Through Hole, Right Angle 40 (16 + 12 + 12) position 0.098" (2.50mm)
