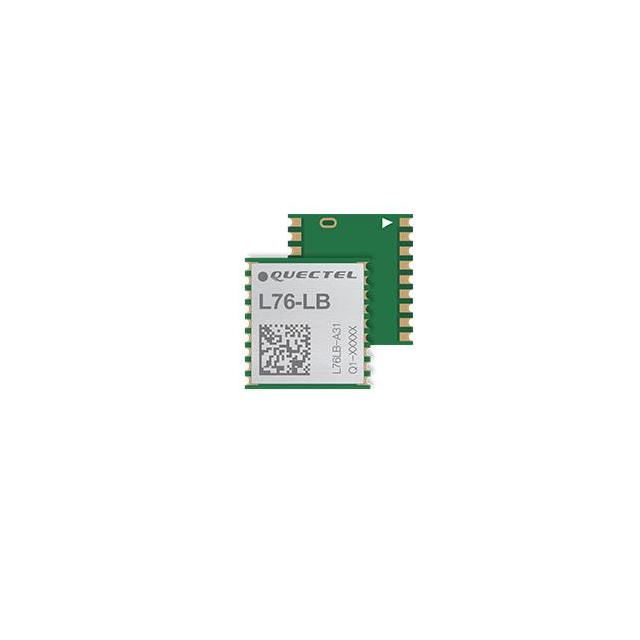

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
RF Family/Standard Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS
Frequency 1.561GHz, 1.575GHz, 1.602GHz
Data Rate 921.6kbps
Sensitivity -165dBm
Serial Interfaces I2C, UART
Antenna Type Antenna Not Included
Voltage - Supply 2.8V ~ 4.3V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 18-SMD Module
Base Product Number L76
MSL Level 3 (168 Hours)
ECCN 7A994
HTSUS 8517.62.0090
Other Names 2958-L76LB-A31TR,2958-L76LB-A31DKR,2958-L76LB-A31CT
Standard Package 250
Win Source Part Number 1068518-L76LB-A31
Ultra Librarian 3D Model Ultra Librarian L76LB-A31 CAD Model

Description

The Quectel L76LB-A31 is a high-performance GNSS module that supports multiple constellations including BeiDou, Galileo, GLONASS, GPS, and GNSS. It operates @ frequencies of 1.561GHz, 1.575GHz, and 1.602GHz and has a data rate of 921.6kbps.

  • Constellations: BeiDou, Galileo, GLONASS, GPS, GNSS
  • Frequencies: 1.561GHz, 1.575GHz, 1.602GHz
  • Data Rate: 921.6kbps
  • Mounting: SMD (SMT)
  • Voltage Supply: 2.8V ~ 4.3V
  • Sensitivity: -165dBm
  • Interfaces: I2C, UART
  • Ideal For: Navigation
  • Temperature Range: -40°C ~ 85°C
