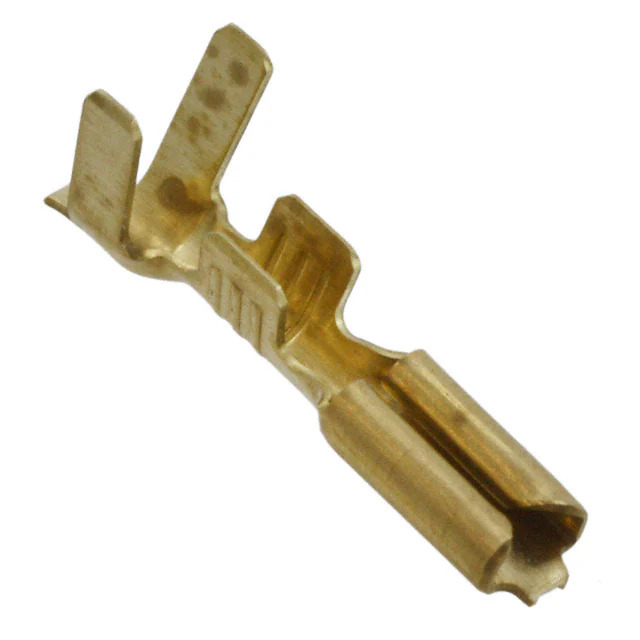

1217345-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1217345-1

Part No 1217345-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 16-18AWG 0.110 / 0.110" (2.79mm) Quick Connect Female 16-18 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.655" (16.64mm)
Termination Crimp
Wire Gauge 16-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.110" ~ 0.170" (2.79mm ~ 4.32mm)
Base Product Number 1217345
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364986-1217345-1
Ultra Librarian 3D Model Ultra Librarian 1217345-1 CAD Model

Description

The 1364986-1217345-1 is a quick disconnect connector from TE Connectivity AMP Connectors.

  • Series: Faston
  • Mounting Type: Free Hanging (In-Line)
  • Insulation: Non-Insulated
  • Contact Material: Brass
  • Wire Gauge: 16-18 AWG
  • Overall Length: 0.655" (16.64mm)
  • Termination Type: Crimp
  • Terminal Type: Standard
  • Terminal Gender: Female
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Tab Length: 0.250" (6.35mm)
  • Insulation Diameter: 0.110" to 0.170" (2.79mm to 4.32mm)
  • Product Status: Active
  • ECCN: EAR99
