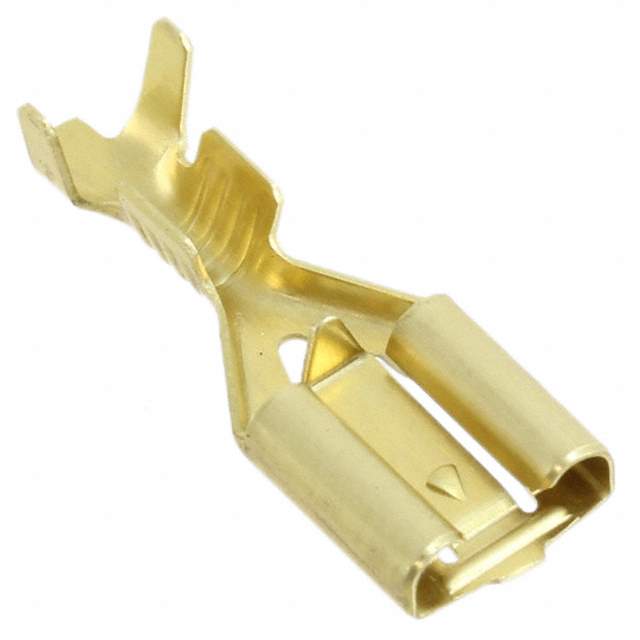

Same model may have multiple batches, images only for reference.

1217094-1

Name: 1217094-1
Brand: TE Connectivity
SKU: 1333837
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1217094-1
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 14-18AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Terminal Type	Standard
Gender	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.293" (7.44mm)
Length - Overall	0.771" (19.58mm)
Termination	Crimp
Wire Gauge	14-18 AWG
Insulation	Non-Insulated
Mounting	Free Hanging (In-Line)
Contact Material	Brass
Insulation Diameter	0.090" ~ 0.155" (2.29mm ~ 3.94mm)
Base Product Number	1217094
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Other Part Number	A118924CT,-1217094-1-SI,A118924TR,1217094-1-ND
Standard Package	10,000
Win Source Part Number	1333837-1217094-1
Ultra Librarian 3D Model	Ultra Librarian 1217094-1 CAD Model

Alternative Products

Description

This connector is manufactured by TE Connectivity AMP Connectors and has a Win Source Part Number of 1333837-1217094-1.

Category: Quick Connects, Quick Disconnect Connectors
Packaging: Reel - TR
Standard Package: 10,000
Gender: Female
Mounting: Free Hanging (In-Line)
Terminal Type: Standard
Termination: Crimp
Overall Length: 0.771" (19.58mm)
Insulation: Non-Insulated
Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
Tab Length: 0.293" (7.44mm)
Insulation Diameter: 0.090" ~ 0.155" (2.29mm ~ 3.94mm)
MSL Level: 1 (Unlimited)
HTSUS: 8536.90.4000
Base Product Number: 1217094
ROHS3 Compliant: Yes
