Part No 120524-1
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors

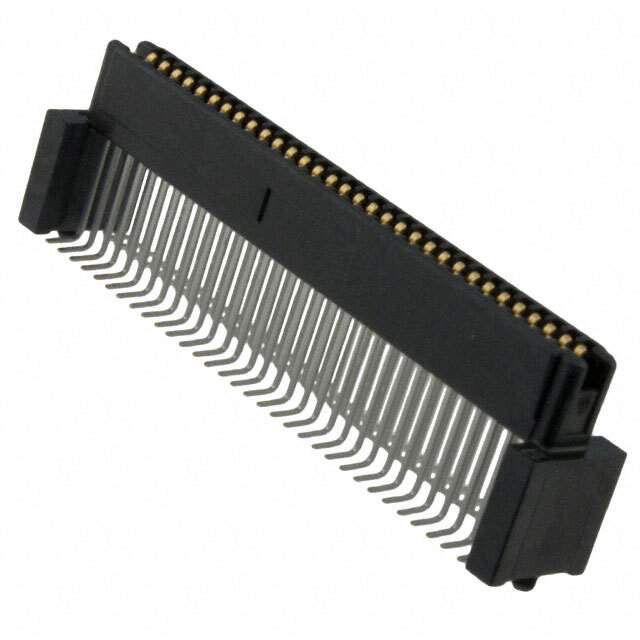

Description CONN RCPT 64POS SMD GOLD  /  64 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity AMP Connectors
Series Free Height (FH) IEEE 1386, PMC
Package Tape & Reel
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 64
Pitch 0.039" (1.00mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Mated Stacking Heights 14mm, 15mm
Height Above Board 0.408" (10.37mm)
Base Product Number 120524
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 120524-1-ND,A100447DKR,A100447TR,1205241,A100447CT,-120524-1-SI
Standard Package 300
Win Source Part Number 1020395-120524-1
Ultra Librarian 3D Model Ultra Librarian 120524-1 CAD Model

Description

The TE Connectivity AMP Connectors 120524 is a rectangular connector array designed for board-to-board interconnects.

  • Series: Free Height (FH) IEEE 1386, PMC
  • Positions: 64
  • Rows: 2
  • Connector Type: outer shroud receptacle
  • Pitch: 0.039 inches (1.00mm)
  • Contact Finish: gold with a thickness of 50.0µin (1.27µm)
  • Board Guide: Yes
  • Packaging: tape and reel
  • Mounting Technology: SMD (SMT)
  • Height Above Board: 0.408 inches (10.37mm)
  • Mated Stacking Height: 14mm and 15mm
  • REACH: compliant
  • ECCN: EAR99
