Same model may have multiple batches, images only for reference.

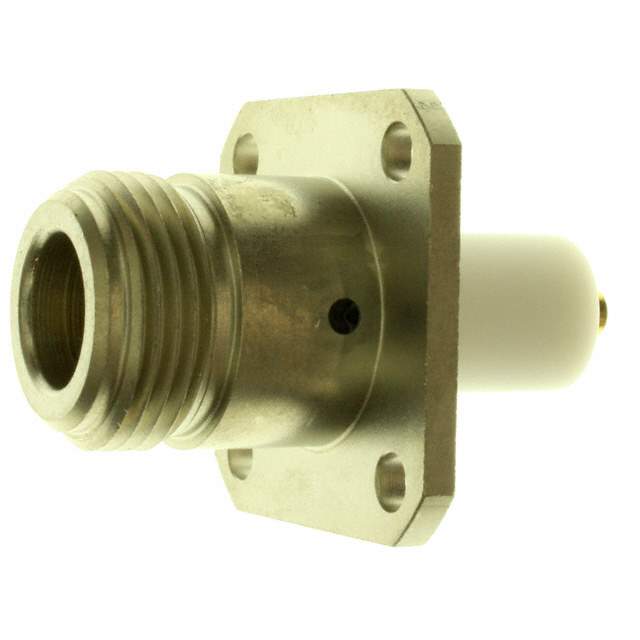

1057290-1 Real Image
Same model may have multiple batches, images only for reference.

1057290-1

Part No 1057290-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN N RCPT STR 50 OHM SOLDER  /  N Type Connector Receptacle, Female Socket 50Ohm Panel Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Package Bulk
Product Status Obsolete
Connector Style N Type
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Threaded
Frequency - Max 11 GHz
Number of Ports 1
Features Extended Insulation
Housing Color Silver
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 250 V
Mating Cycles 500
Base Product Number 1057290
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names A34378,3052 1201 10,10572901
Standard Package 1
Win Source Part Number 1004496-1057290-1
Ultra Librarian 3D Model Ultra Librarian 1057290-1 CAD Model

Description

TE Connectivity's 1004496-1057290-1 N Type connector is a high-quality product that features extended insulation and a threaded fastening type.

  • Connector Type: Receptacle, female socket
  • Voltage Rating: 250V
  • Material: High-quality brass material
  • Body Finish: Nickel
  • Mounting: Suitable for panel mount applications
  • Temperature Range: -65°C to 165°C
  • Impedance: 50Ohm
  • Maximum Frequency: 11 GHz
  • Status: Currently obsolete
  • REACH: Affected by REACH
