Same model may have multiple batches, images only for reference.

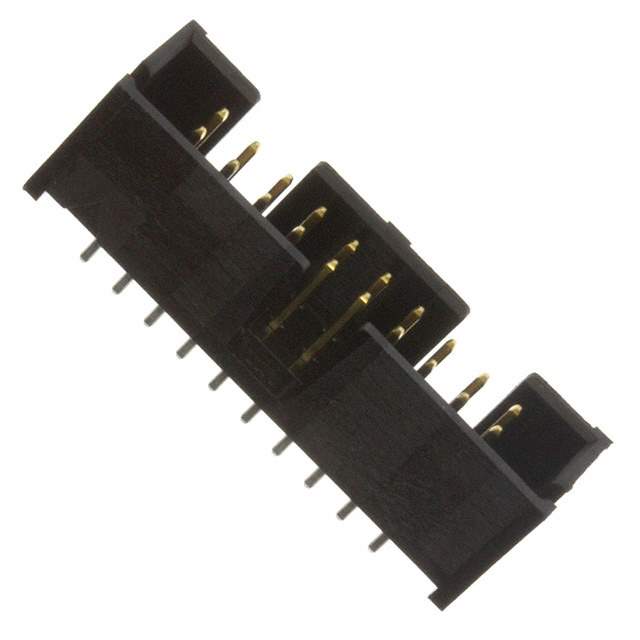

103309-5 Real Image
Same model may have multiple batches, images only for reference.

103309-5

Part No 103309-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 16 Weeks
Features Connector Header Through Hole 20 position 0.100" (2.54mm)
Manufacturer TE Connectivity
Series AMP-Latch
Package Tube
Operating Temperature Range -65°C ~ 105°C
Mounting Through Hole
Family Name 103309
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-103309-5, 103309-5-ND, A26274
Quantity per package 75
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905042-103309-5
Ultra Librarian 3D Model Ultra Librarian 103309-5 CAD Model

Description

The TE Connectivity connector header is a high-popularity electronic component with a through-hole package type.

  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Package Type: Through-Hole
  • Category: Connectors
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Affected
  • HTSUS: 8536.69.4040
