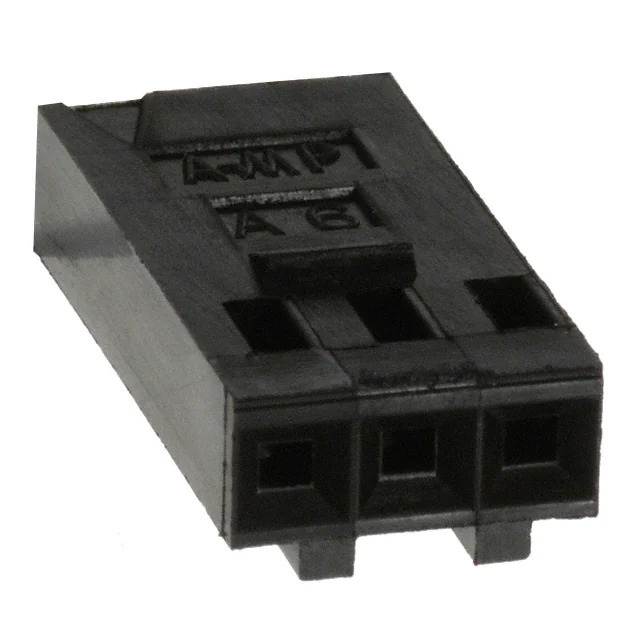

102241-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Features -
Temperature Range - Operating -65°C ~ 105°C
Note Contacts Not Included
Base Product Number 102241
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365418-102241-1
Ultra Librarian 3D Model Ultra Librarian 102241-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod IV 102241 is a receptacle connector with 3 positions and 1 row. TE Connectivity AMP Connectors manufactures it and part of the AMPMODU Mod IV series.

  • Positions: 3
  • Number of Rows: 1
  • Mounting Type: Free Hanging (In-Line)
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Fastening Type: Locking Ramp
  • Contacts Included: No
  • Series: AMPMODU Mod IV
  • Packaging: Bulk
  • Status: Active
  • ECCN: EAR99
