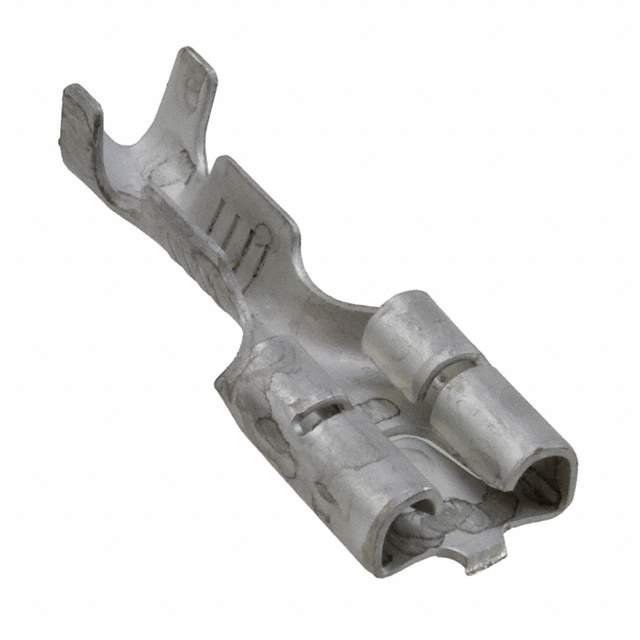

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.303" (7.70mm)
Length - Overall 0.752" (19.10mm)
Termination Crimp
Wire Gauge 15-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 100495
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 1004952,A107148CT,A107148TR,100495-2-ND
Standard Package 6,000
Win Source Part Number 1221140-100495-2
Ultra Librarian 3D Model Ultra Librarian 100495-2 CAD Model

Description

The TE Connectivity AMP Connectors 1221140-100495-2 is a female terminal type connector with a standard terminal and a crimp termination.

  • It has a contact finish of tin and a contact material of brass.
  • The package includes tape & reel (TR) and cut tape (CT), with a standard package of 6,000.
  • The overall length of the connector is 0.752" (19.10mm) with a tab width of 0.250" (6.35mm), tab thickness of 0.032" (0.81mm), and tab length of 0.303" (7.70mm).
  • The insulation diameter ranges from 0.091" ~ 0.130" (2.31mm ~ 3.30mm) and is non-insulated.
  • It has a free hanging (in-line) mounting type and an ECCN of EAR99.
  • Its HTSUS code is 8536.90.
