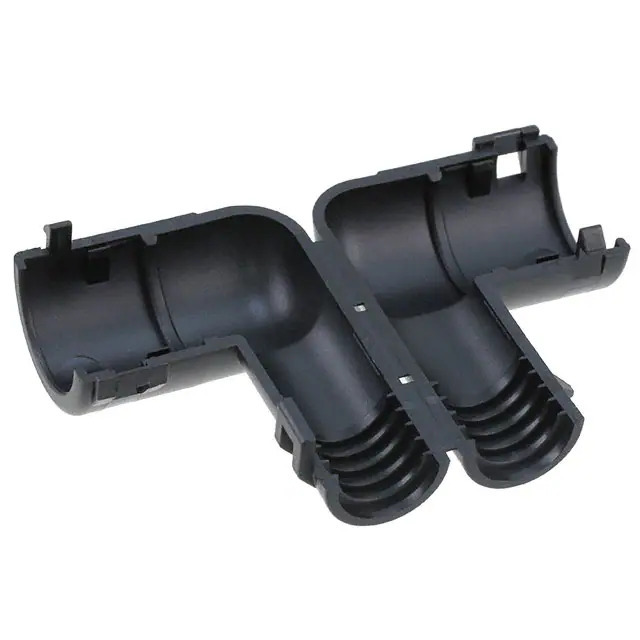

100291-1 TE Connectivity
Same model may have multiple batches, images only for reference.

100291-1

Part No 100291-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Backshells and Cable Clamps
Description CONN BACKSH W/CLMP SZM24 M27 BLK / Black Connector Backshell, Cable Clamp M24, M27
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity AMP Connectors
Series EconoSeal EHM
Package Box
Product Status Active
Type Backshell, Cable Clamp
Cable Opening 0.648" (16.45mm)
Diameter - Outside 0.992" (25.20mm)
Shell Size - Insert M24, M27
Thread Size -
Cable Exit 90°
Material Polybutylene Terephthalate (PBT)
Plating -
Shielding -
Color Black
Features -
Ingress Protection -
Includes -
Material Flammability Rating -
For Use With/Related Products M24, M27 Insert
Base Product Number 100291
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363739-100291-1
Ultra Librarian 3D Model Ultra Librarian 100291-1 CAD Model

Description

The TE Connectivity AMP Connectors EconoSeal EHM is a circular connector backshell and cable clamp designed for various applications.

  • Suitable Insert Shell Sizes: M24, M27
  • Material: Black Polybutylene Terephthalate (PBT)
  • Product Status: Active
  • Base Product Number: 100291
  • HTSUS Code: 8538.90.8180
  • REACH Status: Vendor undefined
  • ECCN: EAR99
