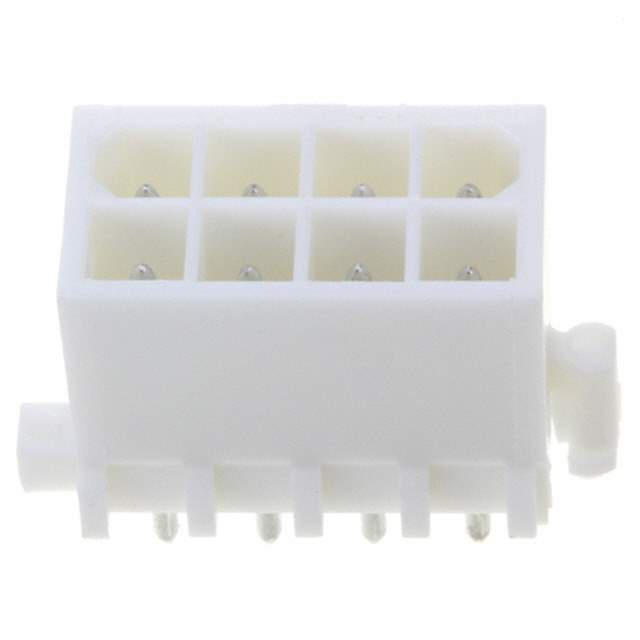

1-794065-0 Real Image
Same model may have multiple batches, images only for reference.

1-794065-0

Part No 1-794065-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 4.14MM / Connector Header Through Hole 8 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.175" (4.45mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 794065
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 17940650,A32458,2266-1-794065-0,1-794065-0-ND
Standard Package 200
Win Source Part Number 1334183-1-794065-0
Ultra Librarian 3D Model Ultra Librarian 1-794065-0 CAD Model

Description

TE Connectivity AMP Connectors presents the 1334183-1-794065-0, a header male pin connector that comes with board lock features.

  • Connector Type: Header
  • Contact Type: Male pin
  • Application: General-purpose
  • Standard Package: 200 connectors
  • Contact Material: Brass
  • Voltage Rating: 600VAC
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Vendor undefined
  • HTSUS Code: 8536.69
