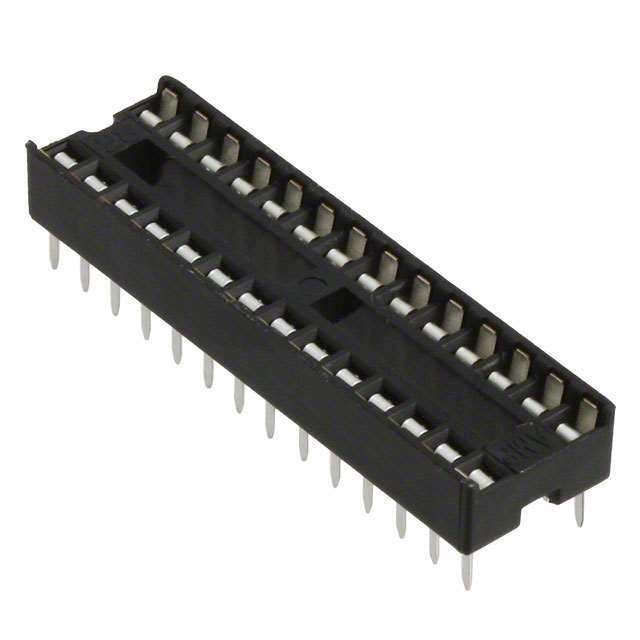

1-390261-9 Real Image
Same model may have multiple batches, images only for reference.

1-390261-9

Part No 1-390261-9
Manufacturer TE Connectivity
Catalog Unclassified
Description CONN IC DIP SOCKET 28POS TIN / 28 (2 x 14) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Datasheet
1-390261-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors>IC Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Product Status Obsolete
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 28 (2 x 14)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Material - Mating Phosphor Bronze
Mounting Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 60.0µin (1.52µm)
Contact Material - Post Phosphor Bronze
Temperature Range - Operating -40°C ~ 105°C
Termination Post Length 0.118" (3.00mm)
Contact Resistance 30mOhm
Base Product Number 390261
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1-390261-9-ND,13902619,1-390-261-9,A100210,Q2567667A,-1-390261-9-SI
Standard Package 1
Win Source Part Number 1334075-1-390261-9
Ultra Librarian 3D Model Ultra Librarian 1-390261-9 CAD Model

Description

The 1334075-1-390261-9 is an IC socket connector manufactured by TE Connectivity AMP Connectors.

  • Positions/Pins: 28
  • Grid: 2x14
  • Pitch-Mating: 0.100" (2.54mm)
  • Termination: Solder
  • Mounting: Through a hole
  • Contact Finish: Tin
  • Contact Material: Phosphor bronze
  • Contact Resistance: 30mOhm
  • Operating Temperature Range: -40°C to 105°C
