1-745492-8 TE Connectivity
Same model may have multiple batches, images only for reference.

1-745492-8

Part No 1-745492-8
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

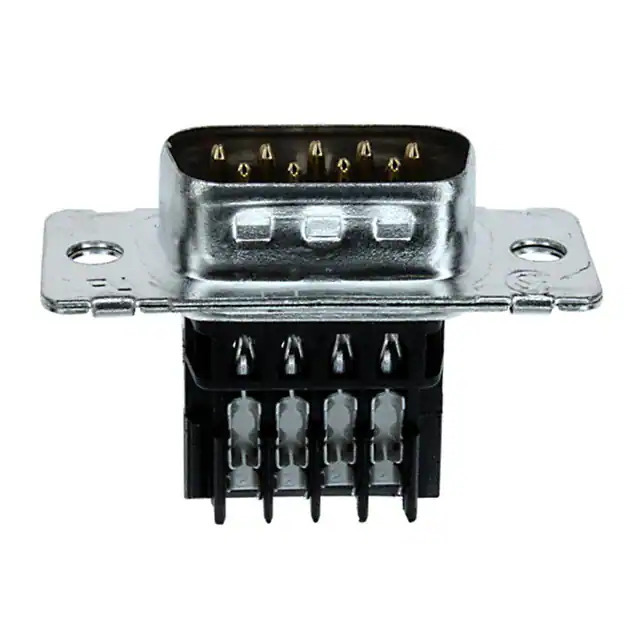

Description CONN D-SUB PLUG 9POS IDC / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDE-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Discrete Wire
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) Varies by Wire Gauge
Backset Spacing -
Features Grounding Indents
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Thermoplastic, Glass Filled
Wire Gauge 22-26 AWG
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 745492
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365189-1-745492-8
Ultra Librarian 3D Model Ultra Librarian 1-745492-8 CAD Model

Description

The 1365189-1-745492-8 is a D-Sub connector assembly from TE Connectivity AMP Connectors.

  • Part of: AMPLIMITE HDE-20 series
  • Mounting Type: Free hanging (in-line)
  • Temperature Range: -55°C to 105°C
  • Current Rating: Varies by wire gauge
  • Wire Gauge Range: 22-26 AWG
  • Contact Finish: Gold with flash thickness
  • Color: Black
  • Connector Type: Plug
  • Pin Gender: Male
  • Contact Type: Signal
  • Number of Positions: 9
  • Number of Rows: 2
  • Termination: IDC (insulation displacement contact)
  • Contact Material: Phosphor bronze
  • Voltage Rating: 250V
  • Flange Feature: Yes
