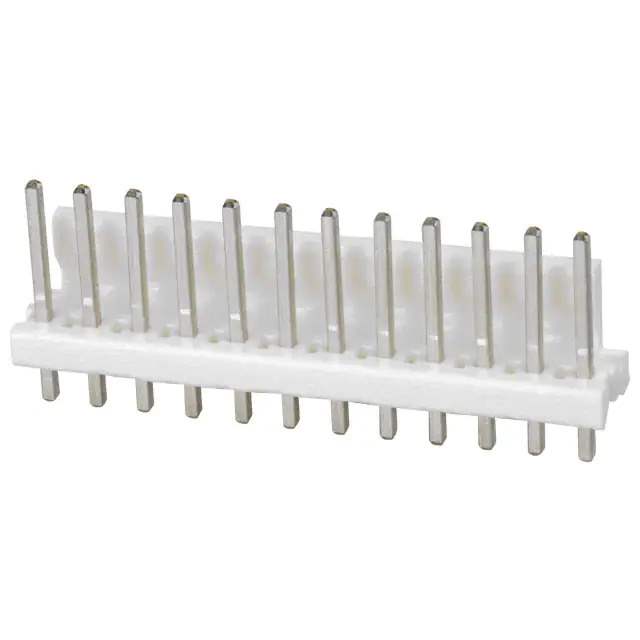

1-640445-2 Real Image
Same model may have multiple batches, images only for reference.

1-640445-2

Part No 1-640445-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 3.96MM / Connector Header Through Hole 12 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series MTA-156
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Base Product Number 640445
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850062-1-640445-2
Ultra Librarian 3D Model Ultra Librarian 1-640445-2 CAD Model

Description

The 850062-1-640445-2 is a male pin header connector from TE Connectivity's MTA-156 series.

  • Series: MTA-156
  • Connector Type: Header
  • Pin Gender: Male
  • Positions: 12
  • Termination: Solder
  • Application: Board to Cable/Wire
  • Pitch: 0.156" (3.96mm)
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Voltage Rating: 600VAC
  • Insulation Material: Thermoplastic, Glass-Filled
  • Insulation Color: Natural
  • Flammability Rating: UL94 V-0
  • Design: Shrouded with 1 Wall
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Manufacturer: TE Connectivity
