Same model may have multiple batches, images only for reference.

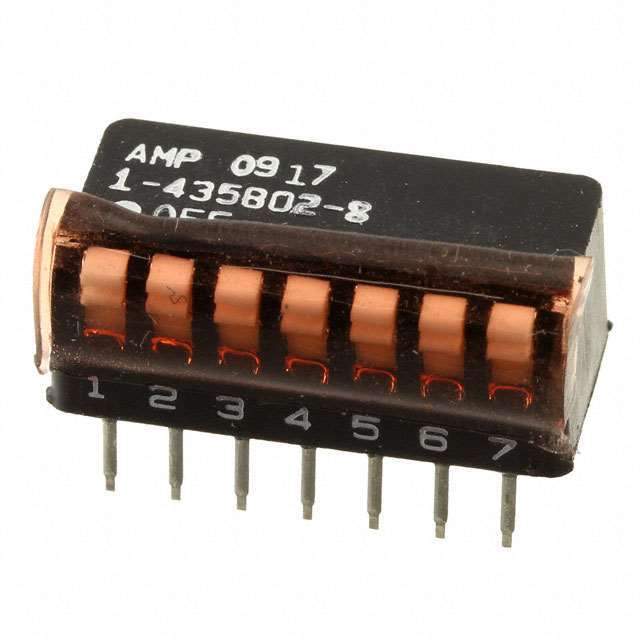

1-435802-8 Real Image
Same model may have multiple batches, images only for reference.

1-435802-8

Part No 1-435802-8
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 25MA 24V
Datasheet
1-435802-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 7
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.290" (7.37mm)
Mounting Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Polyester (PET), Glass Filled
Length 0.780" (19.81mm)
Temperature Range - Operating -55°C to 105°C
Mechanical Life 7,000 Cycles
Electrical Life 7,000 Cycles
Win Source Part Number 1001471-1-435802-8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-435802-8 CAD Model

Description

This electronic component is a switch manufactured by TE Connectivity ALCOSWITCH Switches.

  • Packaging: Tube/Rail
  • Positions: 7
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Seal: Tape Seal
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.290" (7.37mm)
  • Length: 0.780" (19.81mm)
  • Mounting: Through Hole, Right Angle
  • Body Material: Polyester (PET), Glass Filled
  • Circuit: SPST
  • Actuator Type: Piano
  • Electrical Life: 7,000 cycles
  • Mechanical Life: 7,000 cycles
  • Actuator Level: Raised
  • Washable: Yes
  • Temperature Range: -55°C to 105°C
