Same model may have multiple batches, images only for reference.

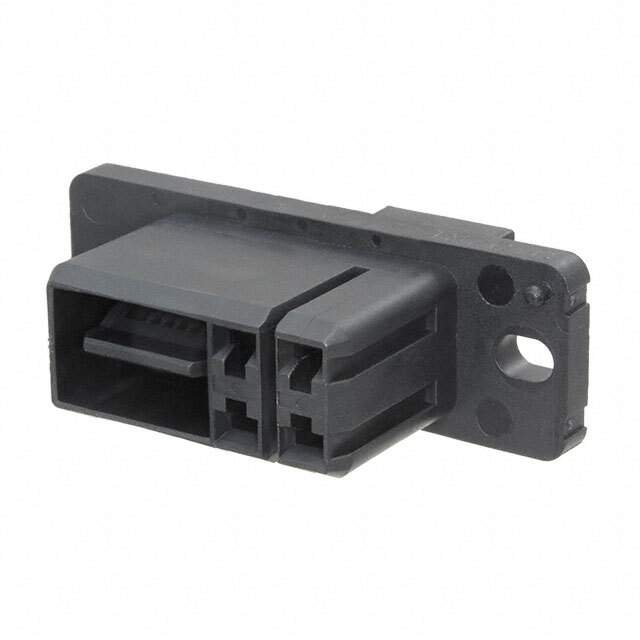

1-292240-2 Real Image
Same model may have multiple batches, images only for reference.

1-292240-2

Part No 1-292240-2
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT MINI-DRAWER 16P PNL MT / 16 Connector Receptacle Panel Mount Black Mini-Drawer
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle
Connector Style Mini-Drawer
Number of Positions 16
Number of Positions Loaded 12
Number of Rows 2
Mounting Panel Mount
Contact Layout, Typical 12 Signal, 4 Power
Color Black
Base Product Number 292240
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Part Number 1-292240-2-ND,A134932
Standard Package 30
Win Source Part Number 1332633-1-292240-2
Ultra Librarian 3D Model Ultra Librarian 1-292240-2 CAD Model

Description

The TE Connectivity AMP Connectors 292240-2 backplane connector is a high-quality, panel-mount receptacle that is designed to provide reliable performance in a variety of electronic applications.

  • Positions: 16
  • Loaded Rows: 12
  • Design: Mini-Drawer Style
  • Mounting Type: Panel Mount
  • Packaging: Bulk
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • Cross-References: A134932 and 1-292240-2-ND
