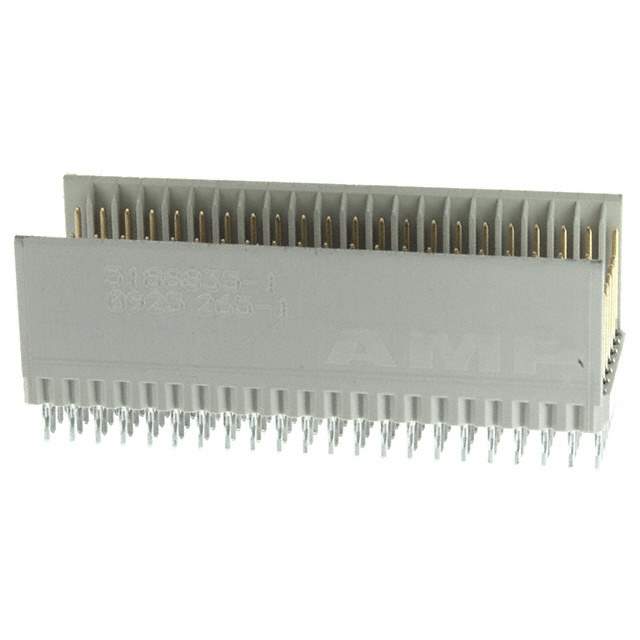

5188835-1 Real Image
Same model may have multiple batches, images only for reference.

5188835-1

Part No 5188835-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN 2MM HEADER 154POS VERT GOLD
Datasheet
5188835-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Z-PACK
Packaging Tube
Connector Type Header, Male Pins
Connector Style B 22
Number of Positions 154 (110 + 44 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5 + 2
Mounting Style Through Hole
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Current Rating 1.5A
Voltage Rating 500Vrms
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 760712-5188835-1
Popularity Medium
Supply and Demand Status Limited
Family Name 5188835
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 5188835-1 CAD Model

Description

The TE Connectivity AMP Connectors 760712-5188835-1 is a male pin header connector from.

  • Series: Z-PACK
  • Pitch: 0.079" (2.00mm)
  • Positions: 154 (110 + 44 ground)
  • Mounting: Through Hole
  • Operating Temperature Range: -55°C to 125°C
  • Voltage Rating: 500Vrms
