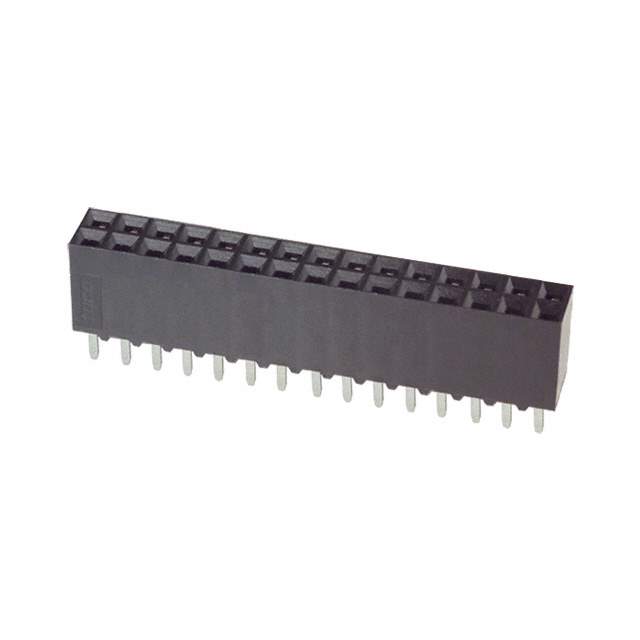

6-534206-5 Real Image
Same model may have multiple batches, images only for reference.

6-534206-5

Part No 6-534206-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 30POS 0.1 GOLD PCB / 30 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.320" (8.13mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 534206
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 65342065,A32945,2266-6-534206-5
Standard Package 15
Win Source Part Number 1332639-6-534206-5
Ultra Librarian 3D Model Ultra Librarian 6-534206-5 CAD Model

Description

This TE Connectivity AMP Connectors receptacle connector is a rectangular connector with two rows of 30 positions each.

  • Mounting Type: Through-Hole
  • Mating Pitch: 0.100 inches (2.54mm)
  • Insulation Material: Polyester, Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Contact Finish Thickness (Mating): 30.0µin (0.76µm)
  • Contact Finish Thickness (Post): 150.0µin (3.81µm)
  • Contact Shape: Square
  • Post Contact Length: 0.115 inches (2.92mm)
  • Current Rating: 2A
  • Operating Temperature Range: -65°C to 125°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Applications: Board-to-Board or Cable
  • Fastening Type: Push-Pull
