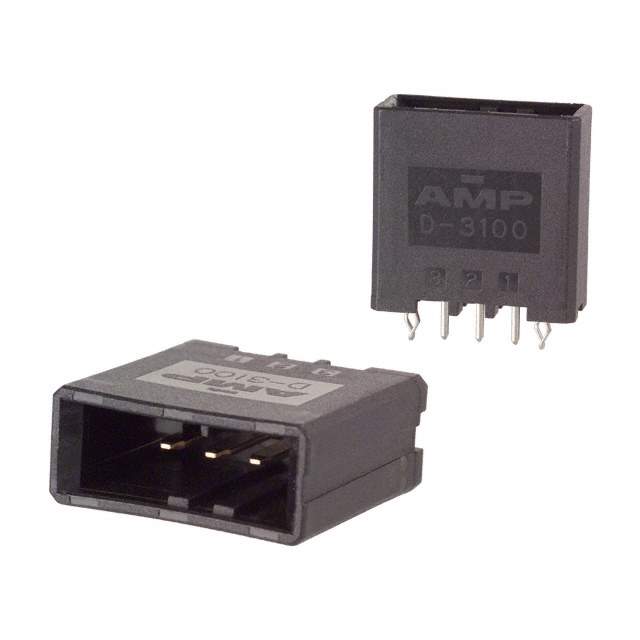

1-178313-2

Name: 1-178313-2
Brand: TE Connectivity
SKU: 1293111
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-178313-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	Dynamic D-3100
Package	Bulk
Connector Type	Header
Contact Type	Tab
Pitch - Mating	0.150" (3.81mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.150" (3.81mm)
Insulation Height	0.850" (21.59mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Polyester, Glass Filled
Features	Board Lock
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	250V
Applications	General Purpose, Industrial
Base Product Number	178313
Other Names	A29482,-1-178313-2-SI,A29482R,2266-1-178313-2,-1-178313-2-CSI,11783132
Standard Package	23
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293111-1-178313-2
Ultra Librarian 3D Model	Ultra Librarian 1-178313-2 CAD Model

Description

The Dynamic D-3100 series features a 3-position male pin header connector with detent lock fastening, designed for board-to-board or cable connections.

Contact Material: Copper alloy
Insulation Material: Thermoplastic, polyester, glass-filled
Contact Finish: Gold with a thickness of 15.0μin
Post Finish: Tin
Voltage Rating: 250V
Temperature Range: -55°C to 105°C
Package: Bulk
Applications: General-purpose and industrial electronic applications
