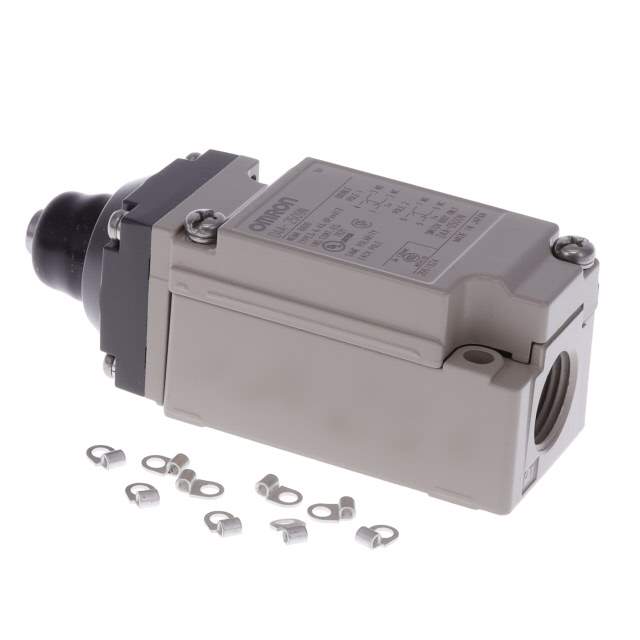

D4A-2509-N Real Image
Same model may have multiple batches, images only for reference.

D4A-2509-N

Part No D4A-2509-N
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION DPDT 5A 125V / Switch Limit N.O./N.C. DPDT Top Plunger Conduit 5A 600VAC 250VDC Linear Screw Mount
Datasheet
D4A-2509-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Automation and Safety
Series D4A
Packaging Bulk
Circuit DPDT-DB
Switch Function On-Mom
Current Rating 5A (AC), 3A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Round (Pin Plunger)
Mounting Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force, Torque 1800gf
Release Force 500gf
Pretravel 0.063" (1.6mm)
Differential Travel 0.040" (1.0mm)
Overtravel 0.201" (5.1mm)
Operating Position 1.812" (46.0mm)
Electrical Life 750,000 Cycles
Operating Temperature Range -20°C ~ 100°C
Win Source Part Number 769644-D4A-2509-N
Popularity Medium
Supply and Demand Status Limited
Family Name D4A-N
Introduction Date September 01, 2006
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian D4A-2509-N CAD Model

Description

The Omron Automation and Safety 769644-D4A-2509-N switch is a DPDT-DB circuit switch with a current rating of 5A (AC) and 3A (DC).

  • Circuit: DPDT-DB
  • Current Rating: 5A (AC), 3A (DC)
  • Voltage Rating: 125V (AC), 30V (DC)
  • Ingress Protection: IP67 (Dust-tight, Waterproof)
  • Mounting Type: Chassis Mount
  • Termination Style: Screw Terminal
  • Operating Temperature: -20°C to 100°C
  • EOL Date: 2026 (Estimated)
  • Actuator Type: Round (Pin Plunger)
  • Electrical Life: 750,000 cycles
  • Pretravel: 0.063" (1.6mm)
  • Differential Travel: 0.040" (1.0mm)
  • Overtravel: 0.201" (5.1mm)
  • Operating Force: 1800gf
  • Release Force: 500gf
  • Packaging: Bulk
  • Popularity: Medium
