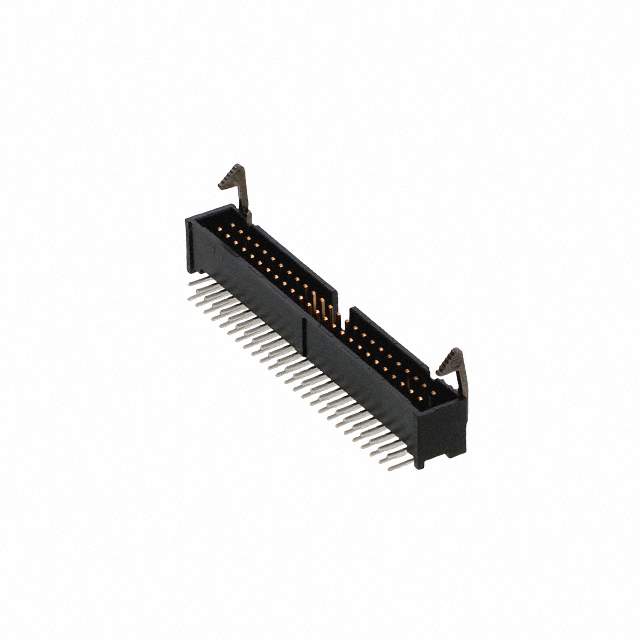

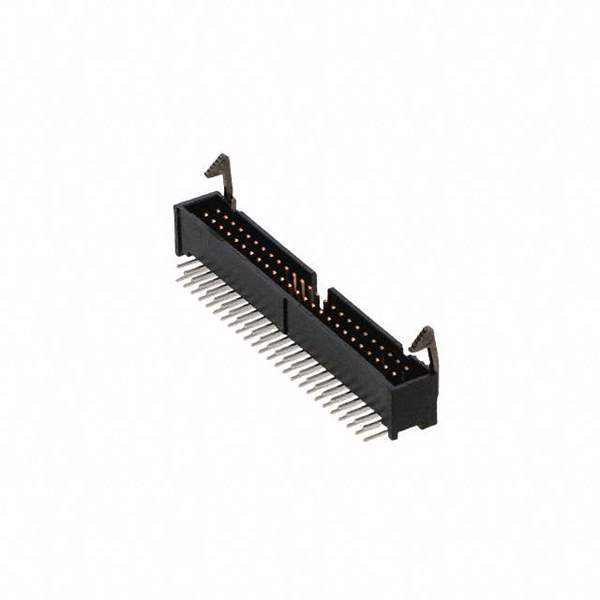

1-1761609-5 Real Image
Same model may have multiple batches, images only for reference.

1-1761609-5

Part No 1-1761609-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 50POS 2.54MM / Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.237" (6.02mm)
Contact Length - Post 0.102" (2.60mm)
Insulation Height 0.362" (9.20mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 1761609
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 117616095,2266-1-1761609-5,A31195,-1-1761609-5-SI
Standard Package 7
Win Source Part Number 1034467-1-1761609-5
Ultra Librarian 3D Model Ultra Librarian 1-1761609-5 CAD Model

Description

The AMP-Latch 1034467-1-1761609-5 is a rectangular connector that is designed for board-to-cable/wire applications.

  • Positions: 50
  • Pitch: 0.100" (2.54mm)
  • Design: Shrouded 4-Wall
  • Fastening Type: Latch Lock/Eject Hooks, Short
  • Contact Material: Phosphor Bronze
  • Finish Thickness: 30.0µin (0.76µm)
  • RoHS: Compliant
  • REACH: Compliant
