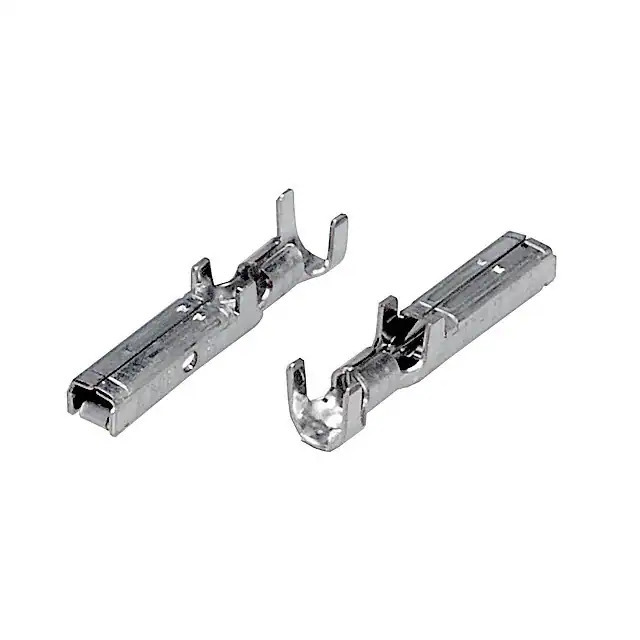

1-175196-5 TE Connectivity
Same model may have multiple batches, images only for reference.

1-175196-5

Part No 1-175196-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN SOCKET 16-20AWG CRIMP TIN / Socket Contact Tin 16-20 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3
Package Tape & Reel
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 16-20 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 175196
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362928-1-175196-5
Ultra Librarian 3D Model Ultra Librarian 1-175196-5 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3 Socket is a rectangular connector contact designed for use in various electronic applications.

  • Contact Termination: Crimp
  • Wire Gauge: 16-20 AWG
  • Contact Finish: Tin
  • Series: Dynamic D-3
  • MSL: Level 1 (Unlimited)
