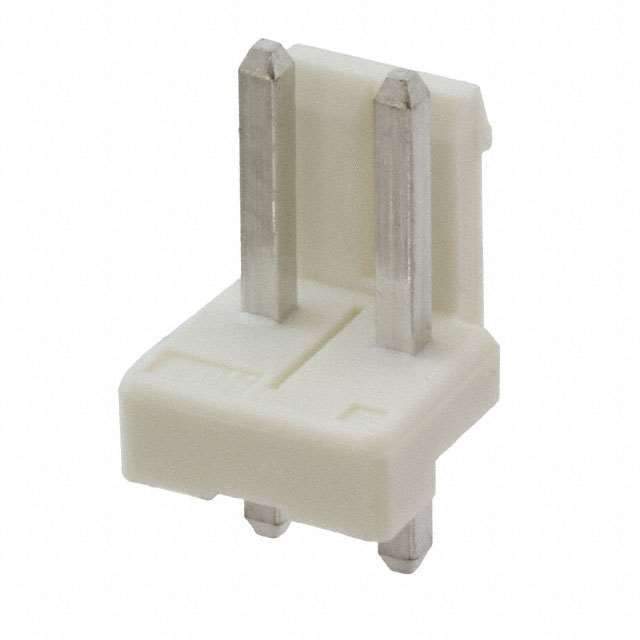

1-1123723-2

Part No 1-1123723-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 3.96MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000001064-1-1123723-2
Manufacturer TE Connectivity
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Series Economy Power
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 1-1123723-2 CAD Model

Description

The TE Connectivity Economy Power series male pin header is a versatile and reliable option for your board to cable/wire connections. With a pitch of 0.156" (3.96mm), this header is designed for a secure mating connection and can accommodate up to 2 positions. The header is packaged in bulk and is ready for use in your project. This connector is ideal for use in a variety of applications, including power supplies, industrial controls, and telecommunications equipment. The male pin contact type ensures a secure and reliable connection, while the board to cable/wire style allows for flexible design options. Trust in the TE Connectivity brand for a high-quality and long-lasting connector solution.
