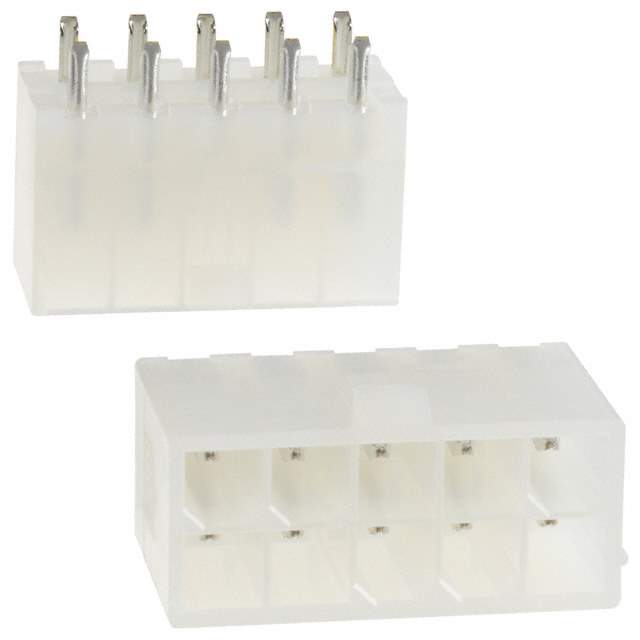

1-1586037-0 Real Image
Same model may have multiple batches, images only for reference.

1-1586037-0

Part No 1-1586037-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 4.2MM / Connector Header Through Hole 10 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 9A
Voltage Rating 600VAC
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1586037
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 115860370,-1-1586037-0-LSI,A30606,-1-1586037-0-SI
Standard Package 255
Win Source Part Number 1334206-1-1586037-0
Ultra Librarian 3D Model Ultra Librarian 1-1586037-0 CAD Model

Description

The TE Connectivity AMP Connectors' 1334206-1-1586037-0 is a male pin header connector with a natural insulation color.

  • Rows: 2
  • Fastening Type: Locking Ramp
  • Current Rating: 9A
  • Voltage Rating: 600VAC
  • Shrouding: Shrouded-4 Wall
  • Pitch-Mating: 0.165" (4.20mm)
  • Mounting: Through-Hole
  • Temperature Range: -40°C ~ 105°C
  • Manufacturer: TE Connectivity AMP Connectors
