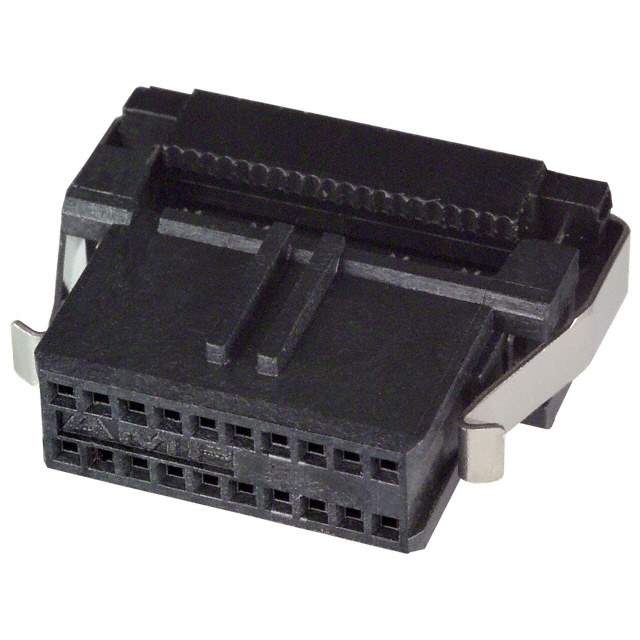

1-111196-8 Real Image
Same model may have multiple batches, images only for reference.

1-111196-8

Part No 1-111196-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RECEPT 20POS .050X.100" IDC
Datasheet
1-111196-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU System 50
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.050" (1.27mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Fastening Type Latch Lock
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 30-32 AWG
Features Feed Through
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Color Black
Win Source Part Number 760208-1-111196-8
Popularity Medium
Supply and Demand Status Limited
Family Name 111196
Introduction Date August 08, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-111196-8 CAD Model

Description

The TE Connectivity AMP Connectors 760208-1-111196-8 is a System 50 AMPMODU connector that has 20 positions and is packaged in bulk.

  • Pitch: 0.050" (1.27mm)
  • Wire Gauge: 30-32 AWG
  • Latch-Locked: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 30µin (0.76µm)
  • Operating Temperature Range: -40°C to 105°C
  • Halogen-Free: Compliant
  • Supply and Demand Status: Limited
  • EOL Date: 2026 (Estimated)
