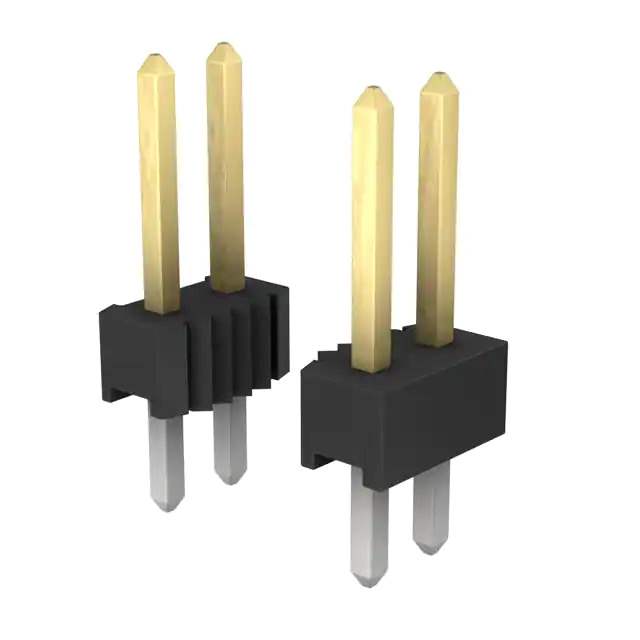

Same model may have multiple batches, images only for reference.

1-104433-3

Name: 1-104433-3
Brand: TE Connectivity
SKU: 853727
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-104433-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 26POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	AMPMODU Mod II
Package	Bulk
Product Status	Obsolete
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.533" (13.55mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	30VAC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	104433
Standard Package	120 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853727-1-104433-3
Ultra Librarian 3D Model	Ultra Librarian 1-104433-3 CAD Model

Alternative Products

Description

The 853727-1-104433-3 is a male pin header connector from the AMPMODU Mod II series by TE Connectivity.

Positions: 26
Connection Type: Board-to-board or cable connections
Material: Copper alloy
Finish: Gold finish for mating contacts
Wire Gauge: 14-18 AWG
Voltage Rating: 30VAC
Termination: Press-fit or solder methods
Connector Type: Push-pull
Shrouded: Unshrouded
Standard Package: 120 pieces
MSL Level: 1 (unlimited)
REACH Status: Vendor undefined
HTSUS Code: 8536.69.4040
