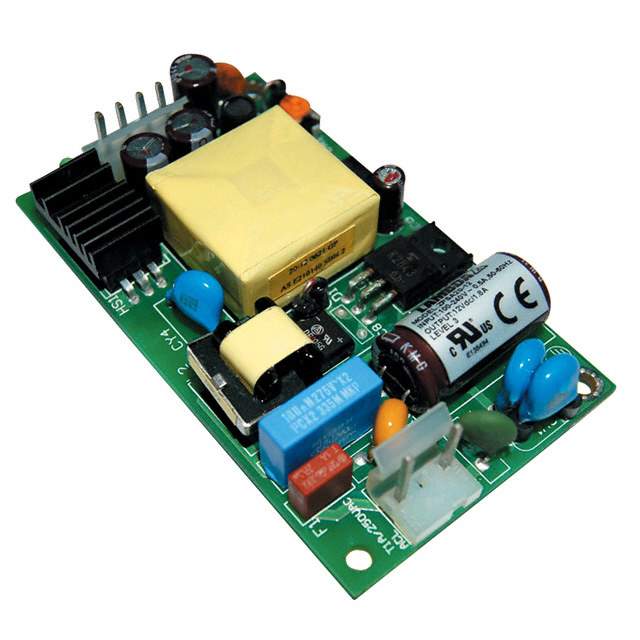

ZPSA20-5 Real Image
Same model may have multiple batches, images only for reference.

ZPSA20-5

Part No ZPSA20-5
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V 20W / Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series ZPSA20 (14-20W)
Package Bulk
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Current - Output 1 4.4 A
Power (Watts) 20W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 82%
Temperature Range - Operating 0°C ~ 70°C
Features DC Input Capable, Universal Input
Mounting Type Chassis Mount
Dimension 3.50" L x 2.00" W x 0.79" H (88.9mm x 50.8mm x 20.0mm)
Approval Agency CE
Minimum Load Required No
Base Product Number ZPSA20
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
Other Names ZPSA205,285-1745
Standard Package 1
Win Source Part Number 1086045-ZPSA20-5
Ultra Librarian 3D Model Ultra Librarian ZPSA20-5 CAD Model

Description

The ZPSA20 series is a 14-20W open frame AC/DC converter from TDK-Lambda Americas Inc.

  • Input Voltage Range: 85 ~ 264 VAC, 120 ~ 370 VDC
  • Output: 5V
  • Maximum Current: 4.4A
  • Application: ITE (Commercial)
  • Mounting: Chassis mountable
  • Size: 3.50" L x 2.00" W x 0.79" H (88.9mm x 50.8mm x 20.0mm)
  • Efficiency: 82%
  • Operating Temperature: 0°C ~ 70°C
  • DC Input Capable: Yes
  • Voltage Isolation: 3 kV
