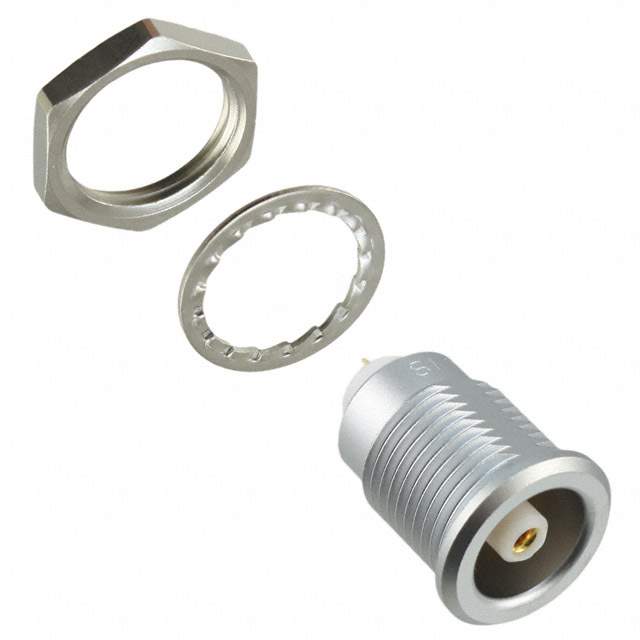

ERA.1S.250.CTL Real Image
Same model may have multiple batches, images only for reference.

ERA.1S.250.CTL

Part No ERA.1S.250.CTL
Manufacturer LEMO
Catalog Coaxial Connectors (RF)
Description CONN COAX RCPT STR 50 OHM SOLDER  /  Coaxial Connector Receptacle, Female Socket 50Ohm Panel Mount Solder Cup
Datasheet
ERA.1S.250.CTL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr LEMO
Series 1S
Package Bulk
Connector Style Coaxial
Connector Type Receptacle, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Cable Group RG-122, 174, 174A, 178B, 188A, 196A, 316B
Fastening Type Push-Pull
Number of Ports 1
Housing Color Silver
Ingress Protection IP50 - Dust Protected
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Chrome
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 250°C
Mating Cycles 1000
Base Product Number ERA.1S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1124-1235,ERA1S250CTL
Standard Package 1
Win Source Part Number 1202493-ERA.1S.250.CTL
Ultra Librarian 3D Model Ultra Librarian ERA.1S.250.CTL CAD Model

Description

The 1S series is a coaxial connector receptacle with a female socket, manufactured by LEMO.

  • Fastening Type: Push-pull
  • Mounting: Rear side nut
  • Housing Color: Silver
  • Ingress Protection: IP50 (dust protected)
  • Impedance: 50Ohm
  • Cable Groups: RG-122, 174, 174A, 178B, 188A, 196A, and 316B
  • Body Material: Brass with chrome finish
  • Center Contact Material: Beryllium copper with gold plating
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mounting Type: Panel mounted
  • Operating Temperature Range: -55°C to 250°C
  • Cross-Reference: 1124-1235 and ERA1S250CTL
  • Category: Connectors, Interconnects>Coaxial Connectors (RF)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4010
