Same model may have multiple batches, images only for reference.

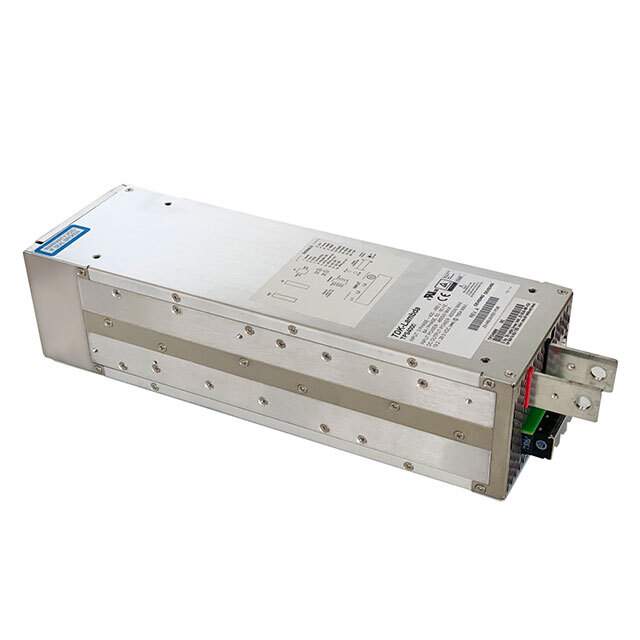

TPS4000-24 Real Image
Same model may have multiple batches, images only for reference.

TPS4000-24

Part No TPS4000-24
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 4000W / Enclosed AC DC Converters 1 Output 24V 350 ~ 528 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series TPS4000 (4080W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 350 ~ 528 VAC
Voltage - Output 1 24V
Current - Output 1 166 A
Power (Watts) 4000W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 92%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Mounting Type Chassis Mount
Dimension 13.03" L x 4.21" W x 3.32" H (331.0mm x 107.0mm x 84.4mm)
Approval Agency CE
Minimum Load Required No
Base Product Number TPS4000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.40.9540
Other Names 285-TPS4000-24,TPS400024
Standard Package 1
Win Source Part Number 1100921-TPS4000-24
Ultra Librarian 3D Model Ultra Librarian TPS4000-24 CAD Model

Description

The TPS4000-24 is an enclosed AC/DC converter from the TPS4000 series of power supplies.

  • Features: Adjustable output, PMBus™, remote on/off, and remote sense capabilities
  • Application: ITE (Commercial)
  • Power Output: 4000W
  • Voltage Input: 350 ~ 528 VAC
  • Efficiency: 92%
  • Isolation Voltage: 3 kV
  • Output Voltage: 24V
  • Current Output: 166A
  • Mounting: Chassis mountable
  • Temperature Range: -10°C ~ 70°C (with derating)
  • Dimensions: 13.03" L x 4.21" W x 3.32" H (331.0mm x 107.0mm x 84.4mm)
  • ECCN: EAR99
  • REACH: REACH affected
