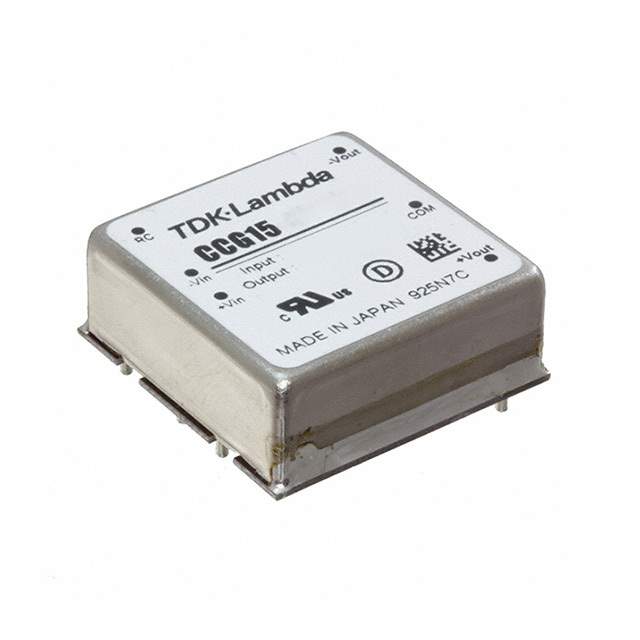

Same model may have multiple batches, images only for reference.

CCG15-48-03S

Name: CCG15-48-03S
Brand: TDK-Lambda Americas Inc.
SKU: 1335136
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CCG15-48-03S
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 15W / Isolated Module DC DC Converter 1 Output 3.3V 4A 18V - 76V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	TDK-Lambda Americas Inc
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	76V
Voltage - Output 1	3.3V
Current - Output (Max)	4A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	85%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active Low
Base Product Number	CCG15
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	285-2608,CCG15-48-03S,285-CCG15-48-03S,285-2608-ND,CCG154803S
Standard Package	1
Win Source Part Number	1335136-CCG15-48-03S
Ultra Librarian 3D Model	Ultra Librarian CCG15-48-03S CAD Model

Alternative Products

Description

The CCG15-48-03S is a DC-DC converter that falls under the category of power supplies - board mount.

Category: Power supplies - board mount
Manufacturer: TDK-Lambda Americas Inc.
Win Source Part Number: 1335136
Output Power: 15W
Current Output: 4A
Voltage Isolation: 1.5kV
Voltage Input Range: 18V to 76V
Features: Remote on/off and OCP, OVP
Packaging: Tube
Case/Package: 6-DIP module
