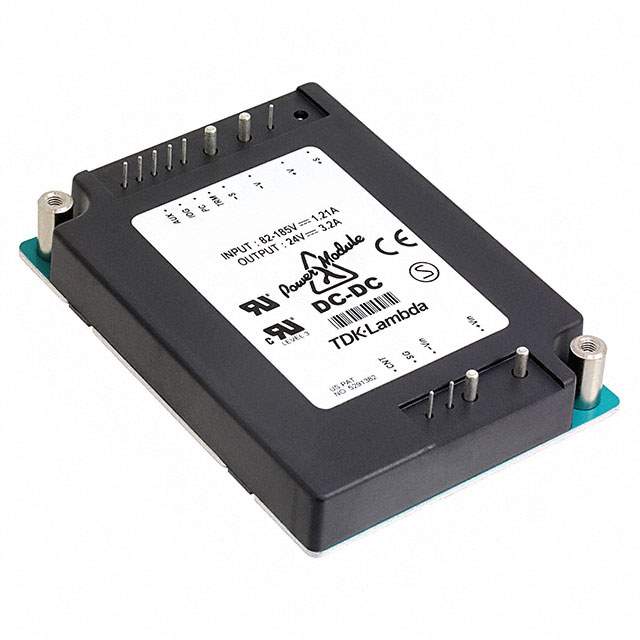

Same model may have multiple batches, images only for reference.

PH75S280-24

Name: PH75S280-24
Brand: TDK-Lambda Americas Inc.
SKU: 273797
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH75S280-24
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERT DC-DC 24V 75W 3.2A
Datasheet	PH75S280-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	TDK-Lambda Americas Inc.
Packaging	Bulk
Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	1
Minimum Input Voltage	200V
Maximum Input Voltage	400V
Nominal Output Voltage 1	24V
Current - Output (Max)	3.2A
Power (Watts)	75W
Isolation Voltage	3kV (3000V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C to 85°C
Mounting	Through Hole
Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Control Features	Enable, Active Low
Win Source Part Number	142271-PH75S28024
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PH75S280-24 CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. Isolated Module is a power supply component that is designed to be mounted through a hole.

Power Output: 75W
Maximum Output Current: 3.2A
Features: remote on/off, over-current protection (OCP), and over-voltage protection (OVP)
Isolation Voltage: 3kV (3000V)
Output: single
Reliable solution for: power supply in ITE (Commercial) applications
