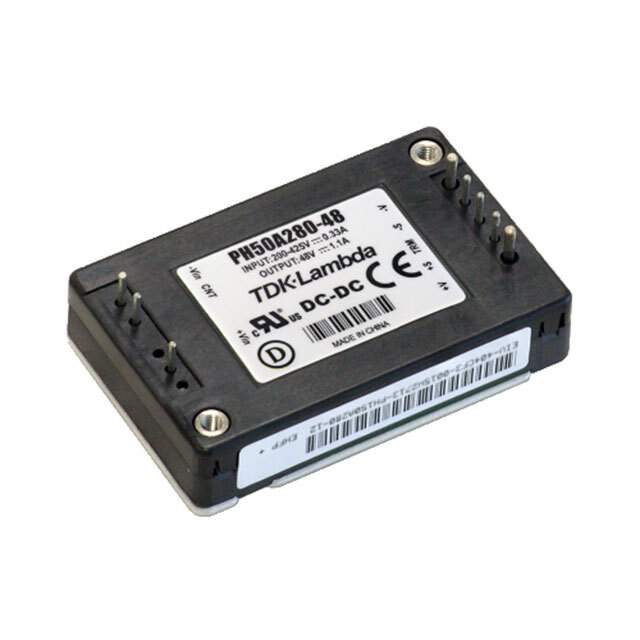

PH50A280-24 Real Image
Same model may have multiple batches, images only for reference.

PH50A280-24

Part No PH50A280-24
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 50W / Isolated Module DC DC Converter 1 Output 24V 2.1A 200V - 425V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series PH-A280 (300W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 200V
Voltage - Input (Max) 425V
Voltage - Output 1 24V
Current - Output (Max) 2.1A
Power (Watts) 50 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/4 Brick
Dimension 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names PH50A280-24,PH50A28024-ND,285-PH50A280-24,PH50A28024
Standard Package 1
Win Source Part Number 1220017-PH50A280-24
Ultra Librarian 3D Model Ultra Librarian PH50A280-24 CAD Model

Description

The PH50A280-24 is an isolated module type DC-DC converter from TDK-Lambda Americas Inc, part of the PH-A280 (300W) series.

  • Power Output: 50 W
  • Voltage Isolation: 3 kV
  • Number of Outputs: 1
  • Current Output: 2.1A
  • Input Voltage Range: 200V to 425V
  • Output Voltage: 24V
  • Efficiency: 89%
  • Mounting Type: Through Hole
  • Package/Case Type: 8-DIP Module, 1/4 Brick
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Popularity: 71 pct
  • HTSUS: 8504.40.9580
  • Other Part Numbers: PH-50A-280-24 and PH50A28024
