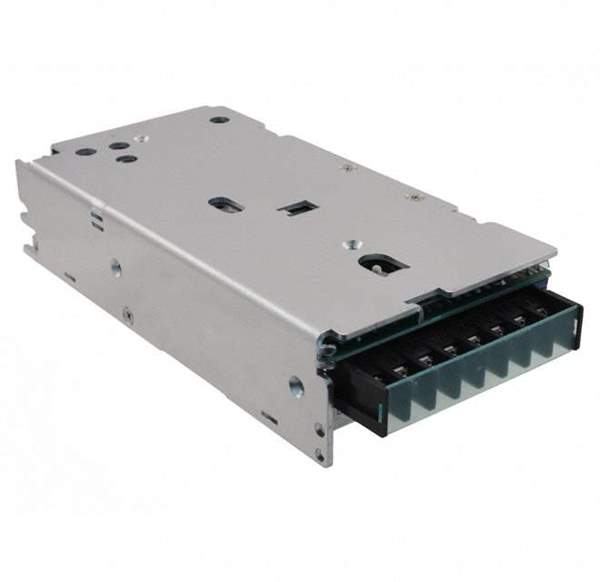

JWT75-522/A Real Image
Same model may have multiple batches, images only for reference.

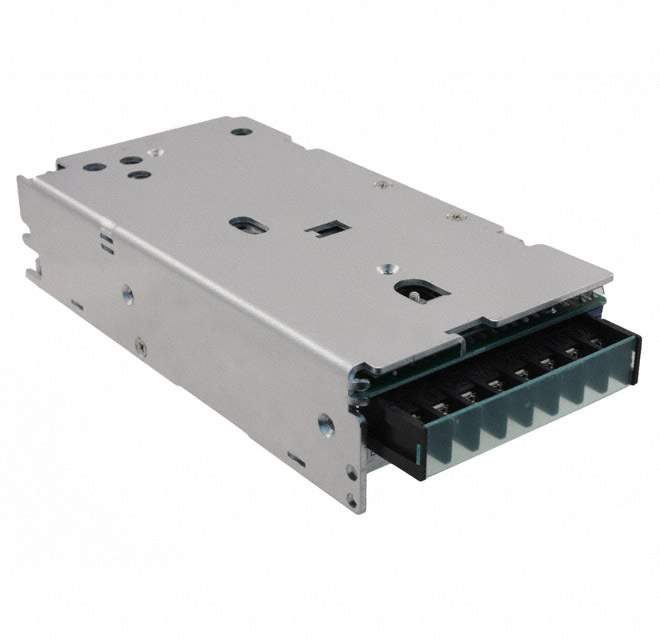

JWT75-522/A

Part No JWT75-522/A
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V +/-12V 75W / Enclosed AC DC Converters 3 Output 5V 12V -12V 85 ~ 265 VAC Input
Datasheet
JWT75-522/A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series JWT (75W)
Package Bulk
Product Status Not For New Designs
Type Enclosed
Number of Outputs 3
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 5V
Voltage - Output 2 12V
Voltage - Output 3 -12V
Current - Output 1 8 A
Current - Output 2 4 A
Current - Output 3 500 mA
Power (Watts) 75W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 72%
Temperature Range - Operating -10°C ~ 65°C (With Derating)
Features Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type Chassis Mount
Dimension 7.40" L x 3.62" W x 1.65" H (188.0mm x 91.9mm x 41.9mm)
Approval Agency CE
Base Product Number JWT75
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9520
Other Names JWT75522A,JWT75522/A,285-1405
Standard Package 1
Win Source Part Number 1031898-JWT75-522/A
Ultra Librarian 3D Model Ultra Librarian JWT75-522/A CAD Model

Description

The TDK-Lambda Americas Inc. JWT (75W) power supply is an enclosed type with adjustable output, DC input capable, PFC, and universal input features.

  • Application: ITE (Commercial)
  • Package: Bulk
  • Standard Package: 1
  • Power Output: 75W
  • Voltage Input: 85 ~ 265 VAC
  • Outputs: Three
  • Voltage Output 1: 5V
  • Voltage Output 2: 12V
  • Voltage Output 3: -12V
  • Efficiency: 72%
  • Mounting Type: Chassis mount
  • Operating Temperature Range: -10°C to 65°C (With Derating)
  • Dimension: 7.40" L x 3.62" W x 1.65" H (188.0mm x 91.9mm x 41.9mm)
