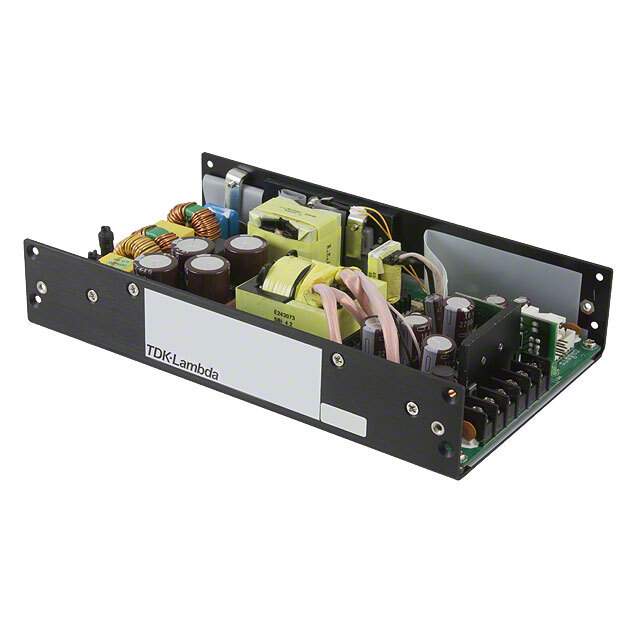

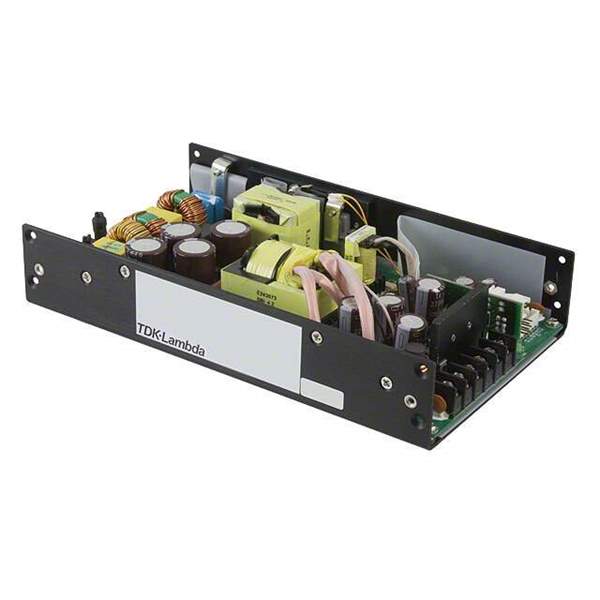

CSS500-57 Real Image
Same model may have multiple batches, images only for reference.

CSS500-57

Part No CSS500-57
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 57V 360W / Open Frame AC DC Converters 1 Output 57V 90 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series CSS500 (500W)
Package Bulk
Product Status Not For New Designs
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 57V
Current - Output 1 6.32 A
Power (Watts) 360W (500W Forced Air)
Applications Medical
Voltage - Isolation 4 kV
Efficiency 87%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm)
Approval Agency CE
Minimum Load Required No
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9510
Other Names CSS50057,CSS500-57,CSS50057-ND,285-CSS500-57
Standard Package 1
Win Source Part Number 989541-CSS500-57
Ultra Librarian 3D Model Ultra Librarian CSS500-57 CAD Model

Description

The CSS500-57 is a device from TDK-Lambda Americas Inc that is widely used for medical applications.

  • Power Output: 360W (500W Forced Air)
  • Efficiency: 87%
  • Features: Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
  • Voltage Input: 90 ~ 264 VAC
  • Voltage Isolation: 4 kV
  • Mounting Design: Chassis Mount
  • Operating Temperature: 0°C ~ 70°C (With Derating)
  • Not for new designs: Yes
  • Approval Agency: CE
