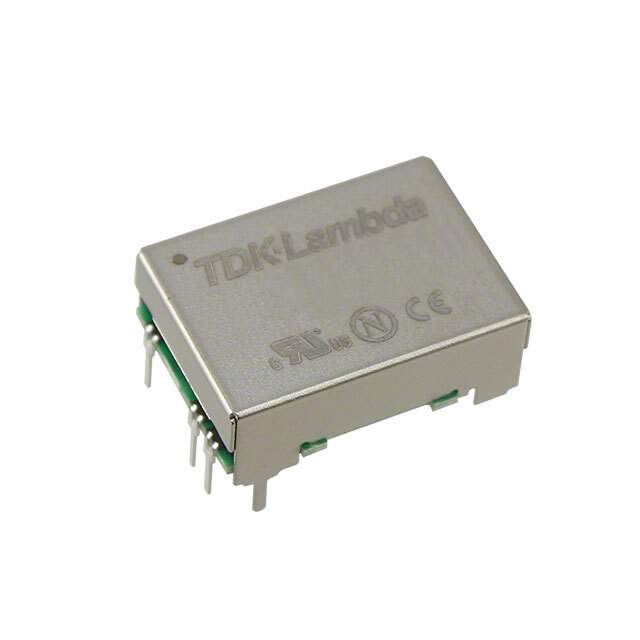

CC3-0512DF-E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (3W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12 ~ 15V
Voltage - Output 2 -12 ~ -15V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC3-0512
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC30512DFE,445-2465
Standard Package 10
Win Source Part Number 1051441-CC3-0512DF-E
Ultra Librarian 3D Model Ultra Librarian CC3-0512DF-E CAD Model

Description

The TDK-Lambda Americas Inc CC3-0512DF-E is a 3W isolated module type DC-DC converter with two outputs.

  • Input Voltage Range: 4.5V to 9V
  • Output Voltage: 12 ~ 15V and -12 ~ -15V
  • Voltage Isolation: 500V
  • Maximum Output Current: 125mA for both outputs
  • Control: enable control with an active low
  • Package Size: 7-DIP module package size of 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Technology: through-hole
