Same model may have multiple batches, images only for reference.

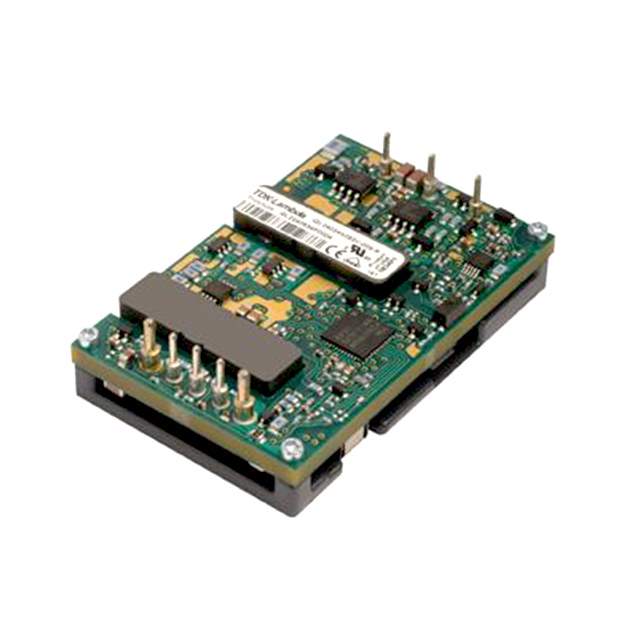

IQL48025A120V-009-R Real Image
Same model may have multiple batches, images only for reference.

IQL48025A120V-009-R

Part No IQL48025A120V-009-R
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 12V 25A PCB / Module DC-DC 48VIN 1-OUT 12V 25A 300W 8-Pin Quarter-Brick
Datasheet
IQL48025A120V-009-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer TDK-Lambda Americas Inc.
Series iQL
Packaging Bulk
Type Intermediate Bus Converter
Number of Outputs 1
Input Voltage MIN 36V
Voltage Input MAX 75V
Voltage - Output 1 12V
Current - Output (Maximum) 25A
Power (Watts) 300W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Operating Temperature Range -40°C ~ 118°C
Efficiency 93.5%
Mounting Style Through Hole
Package 8-DIP Module, 1/4 Brick
Dimension 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm)
Win Source Part Number 776941-IQL48025A120V-009-R
Popularity Medium
Supply and Demand Status Limited
Family Name iQL48025A120V
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian IQL48025A120V-009-R CAD Model

Description

The TDK-Lambda Americas Inc. iQL48025A120V-009-R is a high-quality intermediate bus converter that is designed for ITE (Commercial) applications.

  • Applications: ITE (Commercial)
  • Features: Remote on/off, OCP, and OVP
  • Package: 8-DIP module, 1/4 brick
  • Power Output: 300W
  • Efficiency: 93.5%
  • Voltage Isolation: 1.5kV
  • Outputs: One
  • Output Voltage: 12V
  • Operating Temperature Range: -40°C to 118°C
  • Mounting: Through-hole
  • Series: iQL
  • Dimensions: 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm)
  • Input Voltage Range: 36V to 75V
  • Maximum Output Current: 25A
  • Applications: Power supplies - board mount
  • Manufactured In: China
  • Estimated EOL Date: 2028
