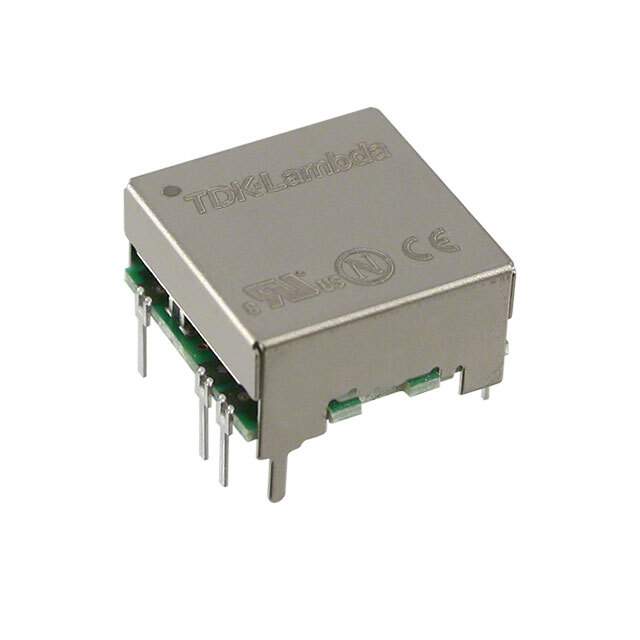

CC1R5-2412SF-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-2412SF-E

Part No CC1R5-2412SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12-15V 1W / Isolated Module DC DC Converter 1 Output 12 ~ 15V 125mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (1.5W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12 ~ 15V
Current - Output (Max) 125mA
Power (Watts) 1 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC1R5
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC1R52412SFE,445-2459
Standard Package 10
Win Source Part Number 1002757-CC1R5-2412SF-E
Ultra Librarian 3D Model Ultra Librarian CC1R5-2412SF-E CAD Model

Description

The TDK-Lambda Americas Inc CC-E (1.5W) series isolated module DC-DC converter is a 1W power converter with a voltage isolation of 500V.

  • Voltage Isolation: 500V
  • Control Feature: enable, active low
  • Current Output: 125mA
  • Input Voltage Range: 18V to 36V
  • Output Voltage Range: 12V to 15V
  • Mounting Type: through-hole
  • Package/Case: 7-DIP module
  • Temperature Range: from -40°C to 85°C
  • Dimension: 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
