Same model may have multiple batches, images only for reference.

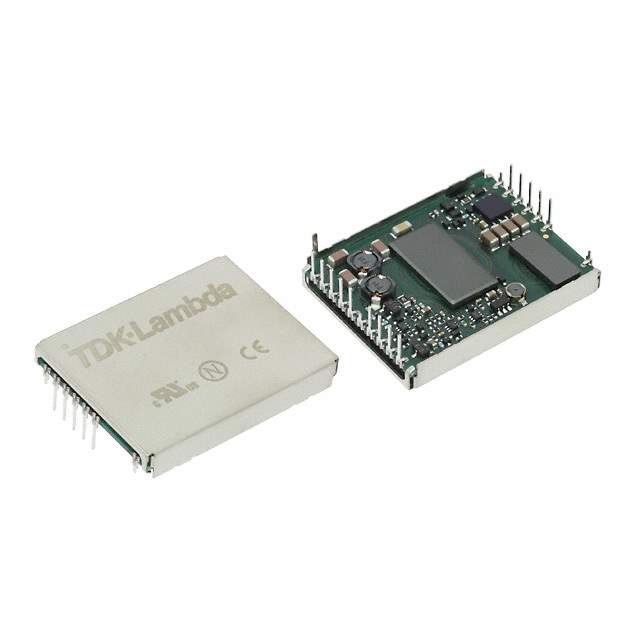

CC15-2405SFP-E Real Image
Same model may have multiple batches, images only for reference.

CC15-2405SFP-E

Part No CC15-2405SFP-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-P-E (15W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 3A
Power (Watts) 15 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 20-DIP Module, 17 Leads
Dimension 1.51" L x 1.17" W x 0.27" H (38.4mm x 29.6mm x 6.8mm)
Control Features Enable, Active Low
Base Product Number CC15-2405
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC152405SFPE,285-1952
Standard Package 10
Win Source Part Number 1051403-CC15-2405SFP-E
Ultra Librarian 3D Model Ultra Librarian CC15-2405SFP-E CAD Model

Description

The TDK-Lambda Americas Inc 1051403-CC15-2405SFP-E is a DC-DC converter that is used in ITE (commercial) applications.

  • Power: 15 W
  • Efficiency: 89%
  • Control Features: enable, active low
  • Package: tray
  • Mounting Type: through hole
  • Dimensions: 1.51" L x 1.17" W x 0.27" H (38.4mm x 29.6mm x 6.8mm)
