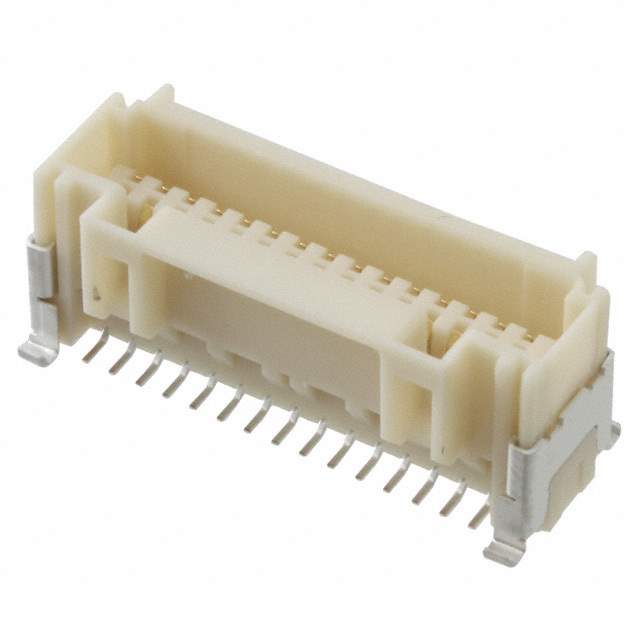

5019313070 Real Image
Same model may have multiple batches, images only for reference.

5019313070

Part No 5019313070
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 1.25mm (.049") Pitch Duo-Clasp Wire-to-Board PCB Receptacle, Dual Row, Vertical, 30 Circuits | CONN RCPT 30POS 0.049 GOLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.049" (1.25mm)
Number of Rows 2
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90μin (0.099μm)
Insulation Color Natural
Insulation Height 0.346" (8.80mm)
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place, Solder Retention
Current Rating (Amps) 1A
Voltage Rating 50V
Applications General Purpose
Insulation Material Polyamide (PA), Nylon
Contact Material Copper Alloy
Contact Finish Thickness - Post 39.4μin (1.00μm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 736500-5019313070
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5019313070 CAD Model

Description

The 736500-5019313070 from Molex is a receptacle connector that is designed for board-to-cable/wire applications.

  • Positions: 30
  • Mounting Type: Surface Mount Technology (SMT)
  • Contact Material: Copper Alloy
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Molex Part Number: 736500-5019313070
  • Win Source Part Number: 736500-5019313070
